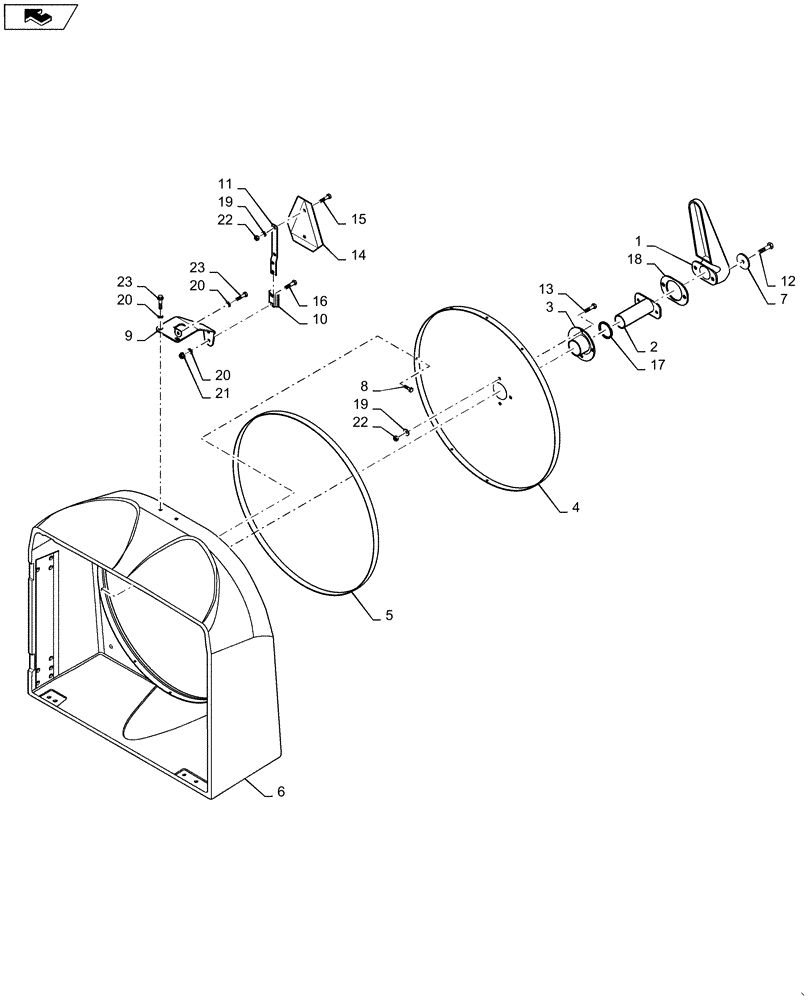

Запчасти Case IH WD1203 (10.419.AC[03]) - REAR COVER, SCREEN, 4 CYLINDER (10) - ENGINE

1

87608183

ARM

Vacuum

1шт.

2

86638972

TUBE,163 mm L

Support

1шт.

3

87398519

HUB

Rear

1шт.

4

86506098

SCREEN

End

1шт.

5

PL

PROCURE LOCALLY

3mm Thick X 19mm Wide, Approx 3 M

1шт.

6

87541347

HOUSING

Screen

1шт.

7

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

8

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

9

87608460

BRACKET

1шт.

10

847590

BRACKET

Socket

1шт.

11

195035

SUPPORT

Slow Moving Vehicle Spade Mount

1шт.

12

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

14

86547710

EMBLEM

Slow Moving Vehicle Emblem

1шт.

15

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

2шт.

16

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

17

87057652

WASHER,61.9mm ID x 77.79mm OD x 1.22mm Thk

1шт.

18

87661445

PLATE

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

21

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

23

280146

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

3шт.
