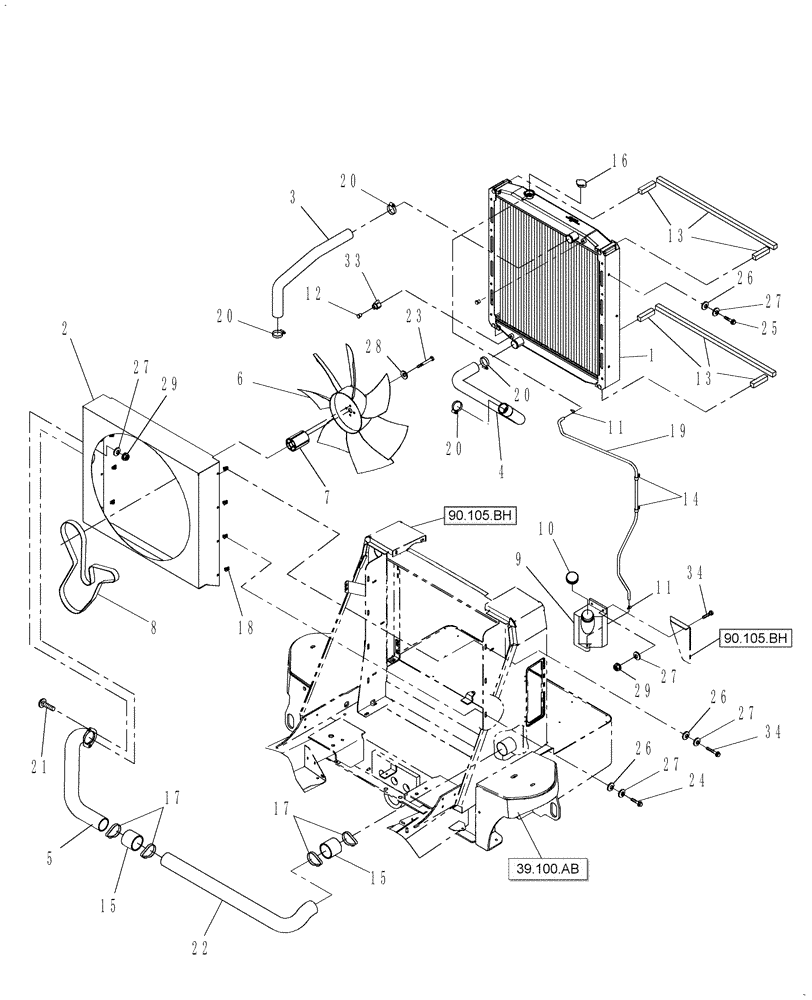

Запчасти Case IH WD1203 (10.400.BE) - RADIATOR & RELATED PARTS, 6 CYLINDER (10) - ENGINE

1

87340496

RADIATOR

1шт.

2

87613681

HALF SAFETY COVER

1шт.

3

87353212

RADIATOR HOSE,45.00 mm ID, 434.10 mm, SAE 20R4 CLASS D1

1шт.

4

87353213

RADIATOR HOSE,45.00 mm ID, 58.00 mm ID, 880.90 mm, SAE 20R4 CLASS D1

1шт.

5

87732295

TUBE

1шт.

6

87270663

FAN

1шт.

7

A184549

SPACER

1шт.

8

87611875

BELT,28.48 mm W x 2005.00 mm L, 8 Ribs

Fan

1шт.

9

86509554

TANK

1шт.

10

86507190

CAP

1шт.

11

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

12

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

13

633973

SEALING STRIP

40" Length

1шт.

Cut to Length

1шт.

14

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

15

87559041

FLEXIBLE HOSE

2шт.

16

87749607

RADIATOR CAP,13 PSI

13 PSI

1шт.

17

59025

CLAMP

4шт.

18

9626645

NUT

8шт.

19

690681

HOSE,7.94mm ID x 3352.8mm L, SAE 30R7

1шт.

Cut to Length

1шт.

20

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

4шт.

21

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

22

87732298

AIR INTAKE TUBE,76.2 mm OD x 753, 250 mm L

1шт.

23

84058418

BOLT,Hex, M10 x 125mm, Cl 8.8

4шт.

24

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

25

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

26

9846522

WASHER

12шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

29

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

33

87034742

REDUCER

1шт.

34

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.
