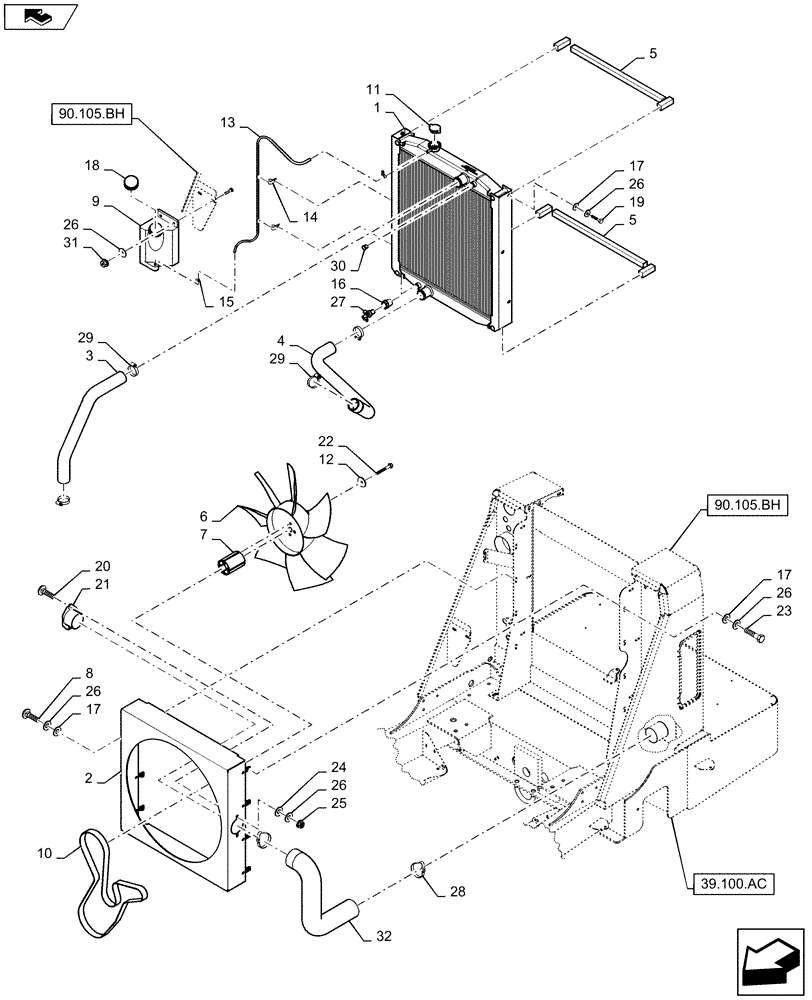

Запчасти Case IH WD1203 (10.400.BE[02]) - RADIATOR & RELATED PARTS, 4 CYLINDER (10) - ENGINE

1

87340500

RADIATOR

1шт.

2

87706814

SHROUD

24 In

1шт.

3

87363047

FLEXIBLE HOSE

Upper Coolant

1шт.

4

87363046

FLEXIBLE HOSE

Lower Coolant

1шт.

5

WIC291355

PAD

Cut From Bulk, 5 Ft

1шт.

6

87416399

FAN

Engine

1шт.

7

87031374

SPACER

1шт.

8

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

86509554

TANK

Coolant Reservoir

1шт.

10

87705866

BELT,28.48 mm W, 8 Ribs

Accessory Drive

1шт.

11

87749607

RADIATOR CAP,13 PSI

13 PSI

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

13

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut From Bulk, Approx 4.5 Ft.

1шт.

14

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

15

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

16

87034742

REDUCER

1шт.

17

9846522

WASHER

14шт.

18

86507190

CAP

For Reservoir

1шт.

19

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

20

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

21

86599338

TUBE

Insert For Shroud

1шт.

22

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

4шт.

23

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

24

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

25

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

27

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1/4" NPTF Drain

1шт.

28

59025

CLAMP

2шт.

29

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

4шт.

30

236622

PLUG,3/8" - 18 NPT

1шт.

31

9626645

NUT

8шт.

32

86623881

FLEXIBLE HOSE,76.20 mm ID x 353.20 mm, SAE J20R4 Class D1

Fresh Air

1шт.
