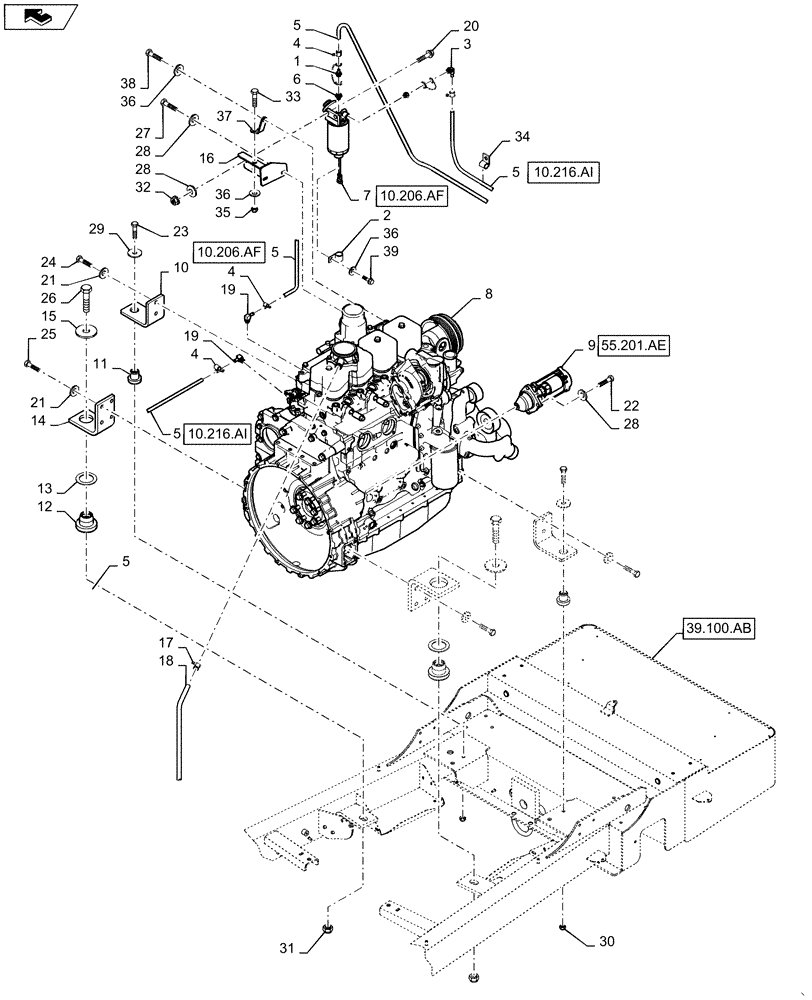

Запчасти Case IH WD1203 (10.001.AJ) - ENGINE MOUNTING, 4 CYLINDER (10) - ENGINE

1

8605736

FITTING

Straight To 3/8 Hose

1шт.

2

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

8605735

90 ELBOW

Straight to 3/8 Hose

1шт.

4

86625041

HOSE CLAMP,11.2mm - 19.8mm

4шт.

5

86516356

FUEL HOSE,0.38" ID, SAE 30R7

Cut From Bulk, Approx 16.5 Ft

1шт.

6

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

7

84348875

FILTER ASSY

Fuel/Water Separator, See Page 10.206.AF For Breakdown

1шт.

8

84366069

ENGINE

T3 NEF

1шт.

8

87052264

ENGINE

T3 NEF Export

1шт.

8

87052264R

REMAN-REPLACEMENT EN

1шт.

8

87052264C

CORE-ENGINE

Return Number

1шт.

8

87052264ER

REMAN-REPLACEMENT EN

1шт.

8

87052264EPAC

CORE-EPA ENGINE

Return Number

1шт.

9

87577368

STARTER MOTOR,3 hole

See Page 55.201.AE

1шт.

9

87577368R

REMAN-STARTER,3 hole

1шт.

9

87577368C

CORE-STARTER

Return Number

1шт.

10

87543343

MOUNTING PLATE

Rear

2шт.

11

86541277

INSULATOR

2шт.

12

86550697

INSULATOR

2шт.

13

9823910

WASHER

2шт.

14

87353479

SUPPORT

Mount

2шт.

15

86545287

WASHER,25.9mm ID x 101.6mm OD x 4.8mm thick

2шт.

16

87620129

BRACKET

1шт.

17

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.

18

87052750

HOSE,0.75" ID x 45.00", SAE 30R2/100R6

Engine Breather

1шт.

19

87400460

90 ELBOW

2шт.

20

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

3шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

22

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

23

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

24

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

25

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

8шт.

26

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

27

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

29

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

30

9636698

NUT,1/2"-13, GB

2шт.

31

280286

NUT,1"-8, GB

2шт.

32

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

33

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

34

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

35

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

37

84135833

BRACKET

1шт.

38

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

39

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.
