Запчасти Case IH WD1203 (90.160.AB) - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

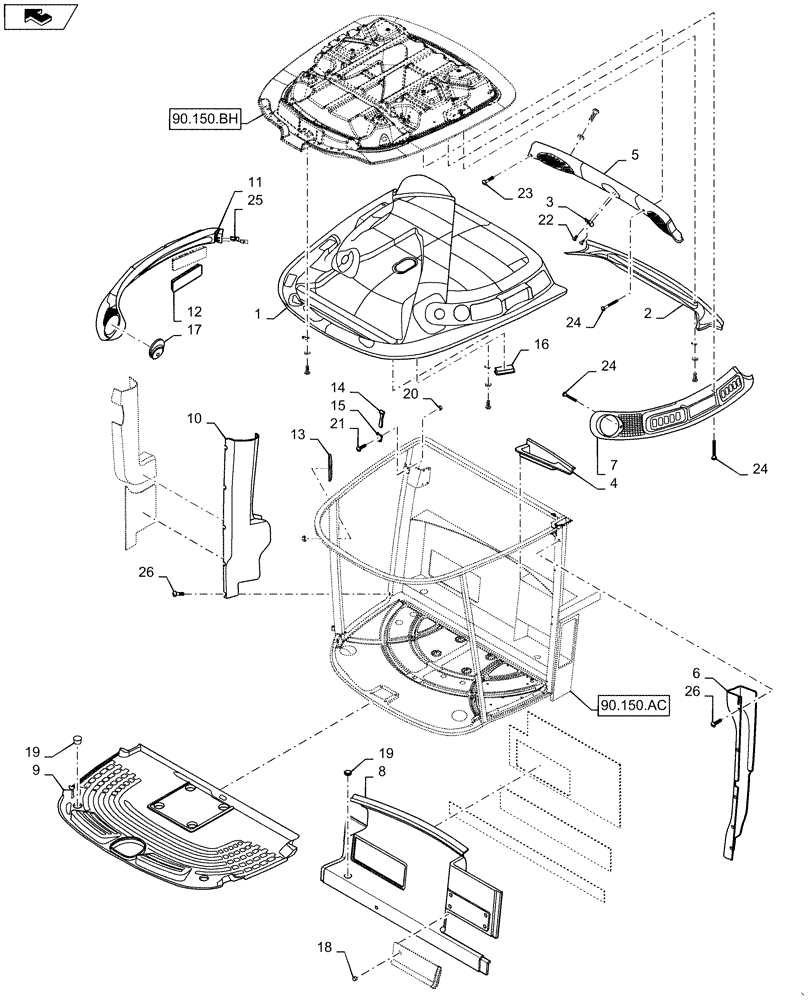

Схема запчастей Case IH WD1203 - (90.160.AB) - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
12
1
home
10
13
26
5
26
9
15
24
16
23
8
4
24
90.150.bh
11
19
22
21
14
2
90.150.ac
20
19
17
3
7
18
24
25

Артикул

Название

Примечание

Количество

1

86979732

CAB

Headliner, Wheat

1шт.

2

86977360

LINER

Rear, Wheat

1шт.

3

86520824

HOOK

Coat Hanger

1шт.

4

87029703

TRAY ASSY.

Wheat

1шт.

5

86995944

PANEL

Right Rear Upper

1шт.

6

87043706

COVER

B Pillar, Wheat

1шт.

7

86995945

PANEL

LH

1шт.

8

87719903

COVER

Rear Wall, Wheat

1шт.

9

87043710

MAT

Floor, Rubber

1шт.

10

87043704

LINER

Wall Cover, RH, Wheat

1шт.

11

86995946

PANEL

RH

1шт.

12

87105189

COVER

Blank Cover Plate, Less Radio

2шт.

13

86011713

REAR VIEW MIRROR

1шт.

14

9507312

HAMMER

Escape Tool

1шт.

15

9507313

HOLDER

Hammer Holder

1шт.

16

87281670

VENT

Vent

8шт.

17

84059804

GRILLE

Speaker

2шт.

18

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

19

84067943

PLUG,M52

3шт.

20

86508812

NUT,M3, Cl 8

2шт.

21

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

22

84058989

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

2шт.

23

86017957

SCREW,Phillips Drive, Oval HD, M6 x 20mm, Cl 4.8

4шт.

24

84439080

BOLT,Phillips Drive, Flat HD, M6 x 1 x 57mm, Cl 4.8

7шт.

25

86014250

SPRING NUT,M6 x 1.0

4шт.

26

84320280

PLUG

10шт.

Выбрано товаров: 26
