Запчасти Case IH WD1203 (88.100.35[04]) - DIA KIT, HYDRAULIC REEL DRIVE (88) - ACCESSORIES

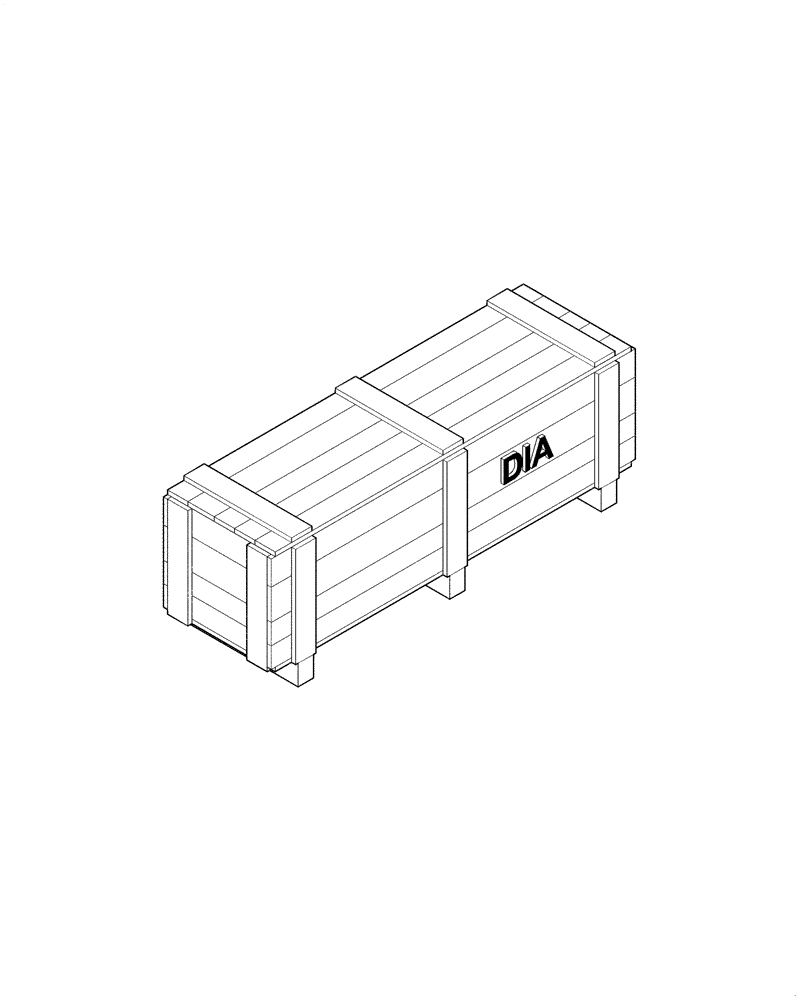

Схема запчастей Case IH WD1203 - (88.100.35[04]) - DIA KIT, HYDRAULIC REEL DRIVE (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47422568

KIT

Hydraulic Reel Drive, MY14, Incl 2 - 23

1шт.

1

47505301

KIT

Used When 47422568 Is Good

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 3

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

5

249730

SECURING STRAP,8" L

Black Nylon

10шт.

6

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

Male

2шт.

7

9601709

HYD CONNECTOR

Incl 3

2шт.

8

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl 3

1шт.

9

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

10

85999238

COUPLING, QUICK, FEM,3/8" x 3/4" - 16 ORB

1шт.

11

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

1шт.

12

86508813

NUT,M5, Cl 8

1шт.

13

86512495

FLANGE NUT,Hex, M5, Cl 8

1шт.

14

86563609

CLAMP

Two Hole, Ribbed, 19.05MM

2шт.

15

86564908

BOLT

Stacking

2шт.

16

86564909

WASHER

Locking Plate

2шт.

17

86979915

HOSE,12.70 mm ID x 3378.20 mm, SAE 100R16

2шт.

18

87023835

SWITCH

Rocker, Reel Mode

1шт.

19

47510672

KIT

Instruction

1шт.

20

84569421

WIRE HARNESS

RSJ

1шт.

21

47544156

WIRE HARNESS

RS

1шт.

22

87053042

PLATE

Twin Cover

2шт.

23

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

Выбрано товаров: 24
