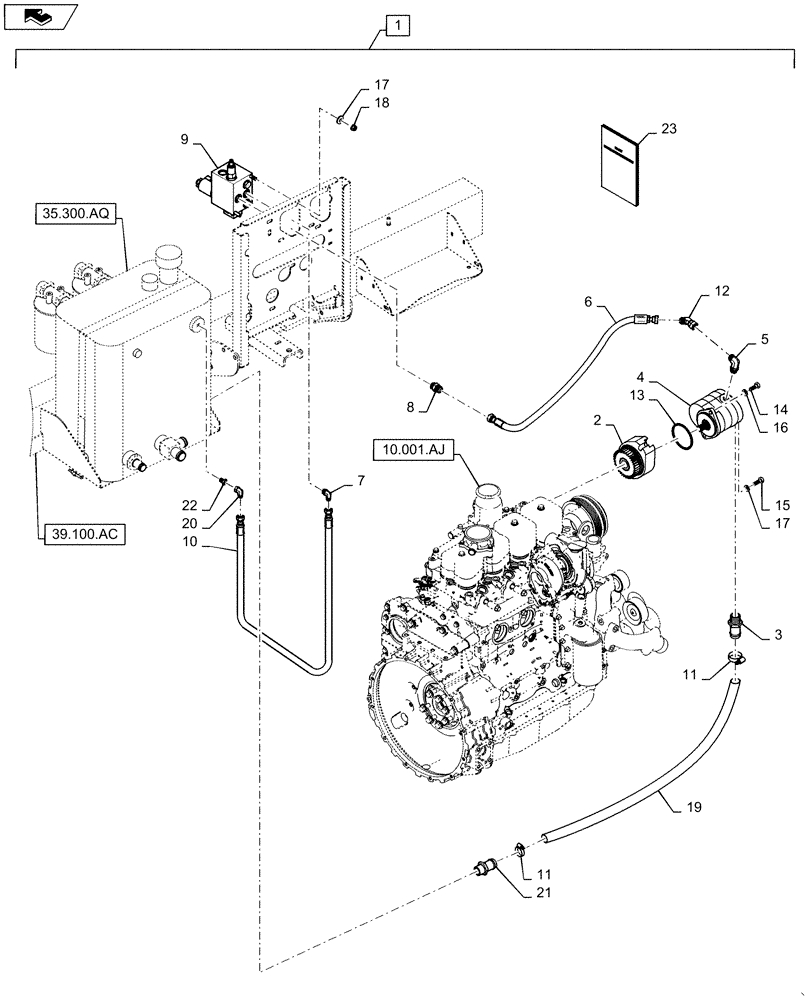

Запчасти Case IH WD1203 (88.100.35[02]) - DIA KIT, TRAC HYD SYSTEM, 4 CYLINDER (88) - ACCESSORIES

1

47511248

KIT

DIA, 4 Cylinder Auxiliary Hydraulics, Incl Ref 2 - 23

1шт.

2

84272202

PTO

1шт.

3

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

1шт.

4

87050689

HYDRAULIC PUMP,22.8 CC

22CC

1шт.

5

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

1шт.

6

87032603

HOSE ASSY.

Pump To Control Valve

1шт.

7

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

8

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

9

86977332

HYDRAULIC VALVE

Auxiliary Control Valve

1шт.

10

87043285

HOSE ASSY.

Hydraulic tank To Control Valve

1шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

12

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

13

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

14

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

15

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

19

87032237

HOSE,1.00" ID x 44.00", SAE 100R4

Pump To Hydraulic Tank

1шт.

20

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

21

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

22

86550731

REDUCER

1шт.

23

84220817

MANUALS KIT

1шт.
