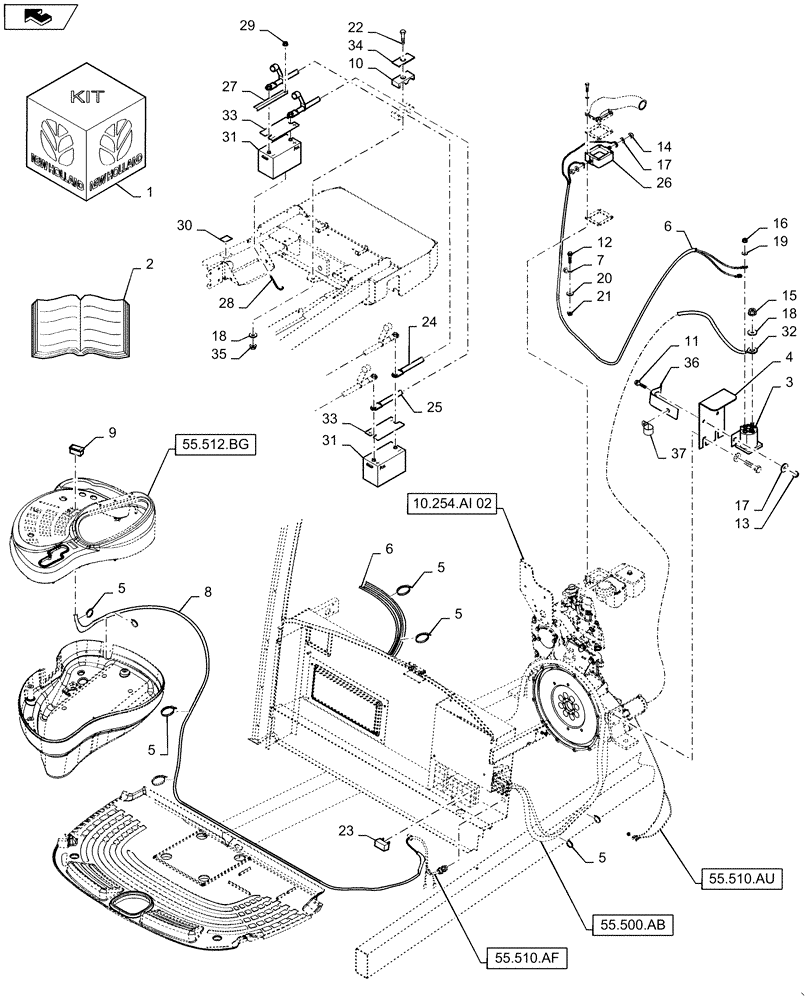

Запчасти Case IH WD1203 (88.100.10[01]) - DIA KIT, ADDITIONAL PRODUCTS, COLD START KIT 4 CYLINDER (88) - ACCESSORIES

1

84293919

DIA KIT, HARVESTER

4 Cylinder Cold Start, Incl 2 - 37

1шт.

1

47586289

KIT

Cold Starting Aid

1шт.

2

84578450

INSTRUCTION

Instruction, 4 Cyl Cold Start

1шт.

3

87406968

SOLENOID SWITCH

1шт.

4

87043023

BRACKET

1шт.

5

86566989

CABLE TIE,208mm L

15шт.

6

87039571

HARNESS

Coil To Grid Heater

1шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

87041200

HARNESS

RH Control Console To Main Harness

1шт.

9

86631307

SWITCH

Preheating

1шт.

10

86900725

CLAMP

1шт.

11

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

87825

NUT,#10-32

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

19

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

23

86509590

RELAY

20 Amp

1шт.

24

86533717

ELECTRIC CABLE

Battery Cable, Negative

1шт.

25

86533716

ELECTRIC CABLE

Battery Cable, Positive

1шт.

26

82017872

HEATER

Grid Heater

1шт.

27

794967

SUPPORT

Battery Strap

1шт.

28

798180

BOLT

2шт.

29

9628503

NUT,3/8"-16, G5

4шт.

30

76776

DECAL

Battery Terminal Sign

1шт.

31

87054970

DECAL

Danger, Battery

1шт.

32

87042839

ELECTRIC CABLE

Battery Cable, Positive

1шт.

33

87039570

HARNESS

Used Only With Economy Cabs

1шт.

34

87053042

PLATE

1шт.

35

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

36

87048477

SPRING CLIP

1шт.

37

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.
