(55.510.AU) - BATTERY - CABLES, 4 CYLINDER MACHINES

Запчасти Case IH WD1203 (55.510.AU) - BATTERY - CABLES, 4 CYLINDER MACHINES (55) - ELECTRICAL SYSTEMS

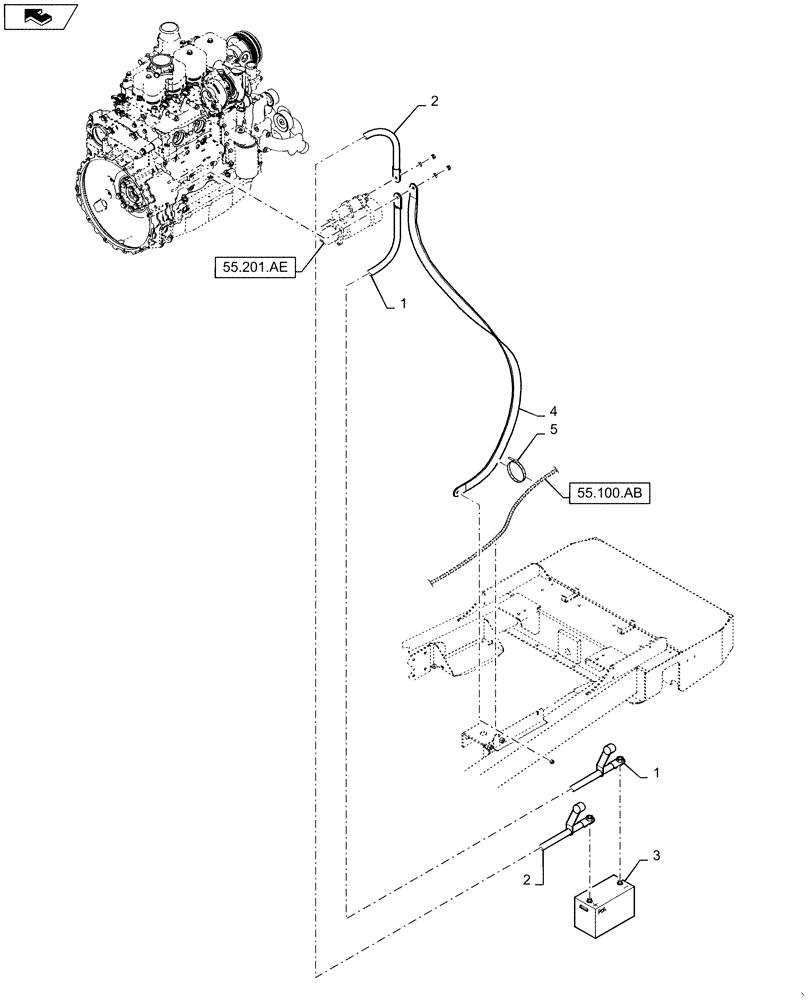

Схема запчастей Case IH WD1203 - (55.510.AU) - BATTERY - CABLES, 4 CYLINDER MACHINES (55) - ELECTRICAL SYSTEMS
1
55.100.ab
1
4
55.201.ae
2
3
2
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86533713

ELECTRIC CABLE

Battery Cable Negative

1шт.

2

84515764

WIRE HARNESS

Battery Relay, Start

1шт.

3

BMF31FSW

DRY BATTERY

650 CCA

1шт.

4

87035431

GROUND STRAP

1шт.

5

249730

SECURING STRAP,8" L

1шт.
