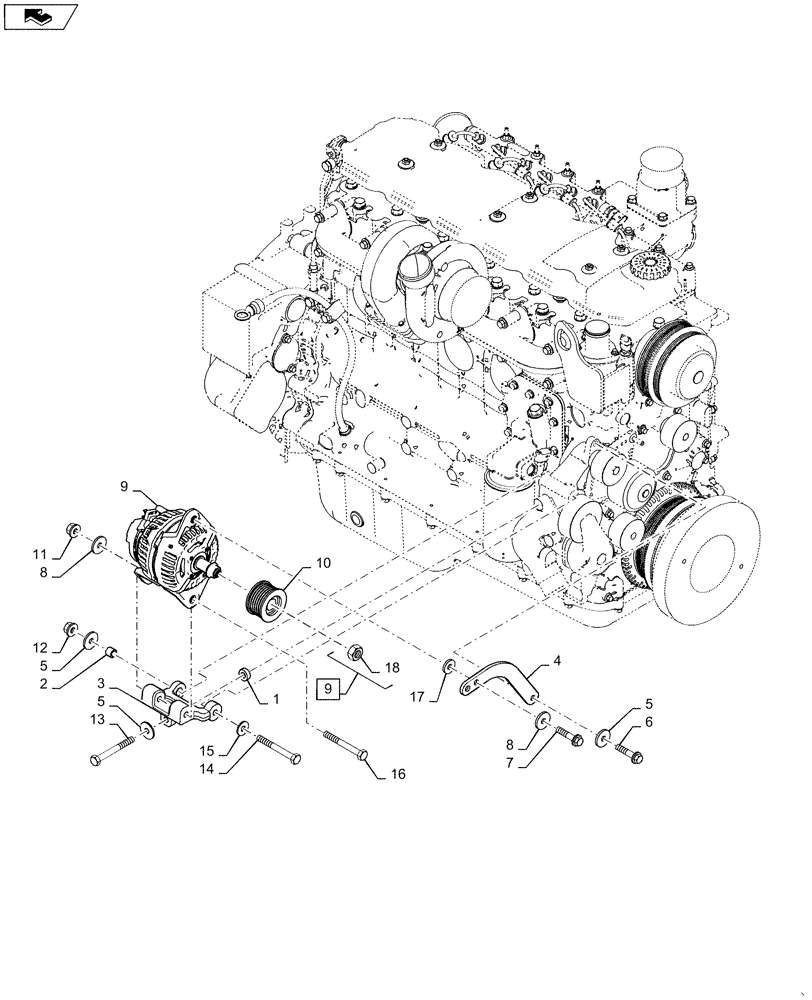

Запчасти Case IH WD1203 (55.301.AD) - ALTERNATOR, MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

1

87060530

SUPPORT

1шт.

2

117441

SPACER

1шт.

3

87060348

MOUNTING PARTS

1шт.

4

84140333

BRACKET MONITOR EQUI

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

6

274251

BOLT,Hex Serr Flg, M10 x 25mm

1шт.

7

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

8

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

9

87715397

ALTERNATOR,14V, 80A(1800 RPM)

Incl 18 Nut

1шт.

9

87715397R

REMAN-ALTERNATOR

1шт.

9

87715397C

CORE-ALTERNATOR

Return Number

1шт.

10

86976071

PULLEY,66mm OD

1шт.

11

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

13

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

14

86507010

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

1шт.

15

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

16

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

17

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

18

NSS

NOT SOLD SEPARAT

Serviced With Ref 9

1шт.
