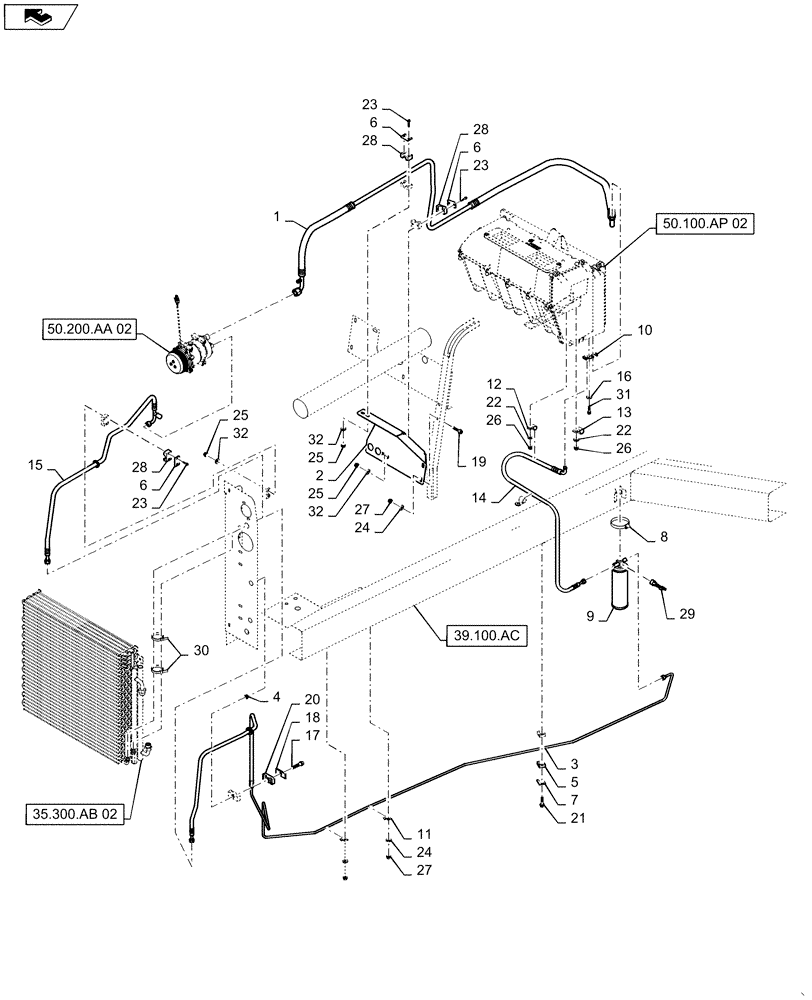

Запчасти Case IH WD1203 (50.200.BY[02]) - A/C & HEATER HOSES, DELUXE 4 CYLINDER MODELS (50) - CAB CLIMATE CONTROL

1

87528332

HOSE ASSY.

Low Side, From Compressor to Evap

1шт.

2

47386894

BRACKET

1шт.

3

47416916

A/C HOSE

High Side, From Receiver Drier to Condensor

1шт.

4

9626645

NUT

1шт.

5

87603907

CLAMP

1шт.

6

86900727

COVER

3шт.

7

87022336

PLATE

1шт.

8

513307

CLAMP

1шт.

9

87587685

RECEIVER-DRYER,Air Conditioner

1шт.

10

87754245

MOUNTING PLATE

1шт.

11

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

12

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

13

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

87473405

HOSE ASSY.

High Side, Evap To Receiver Drier

1шт.

15

87553529

HOSE

High Side, Condensor To Compressor

1шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

17

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

18

87053042

PLATE

1шт.

19

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

20

87105732

CLAMP

1шт.

21

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

6шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

86624020

FLANGE NUT,Flg, 1/4"-20.G5

6шт.

26

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

27

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

28

86900723

CLAMP

3шт.

29

9849562

PRESSURE SWITCH

High Pressure

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

31

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

32

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.
