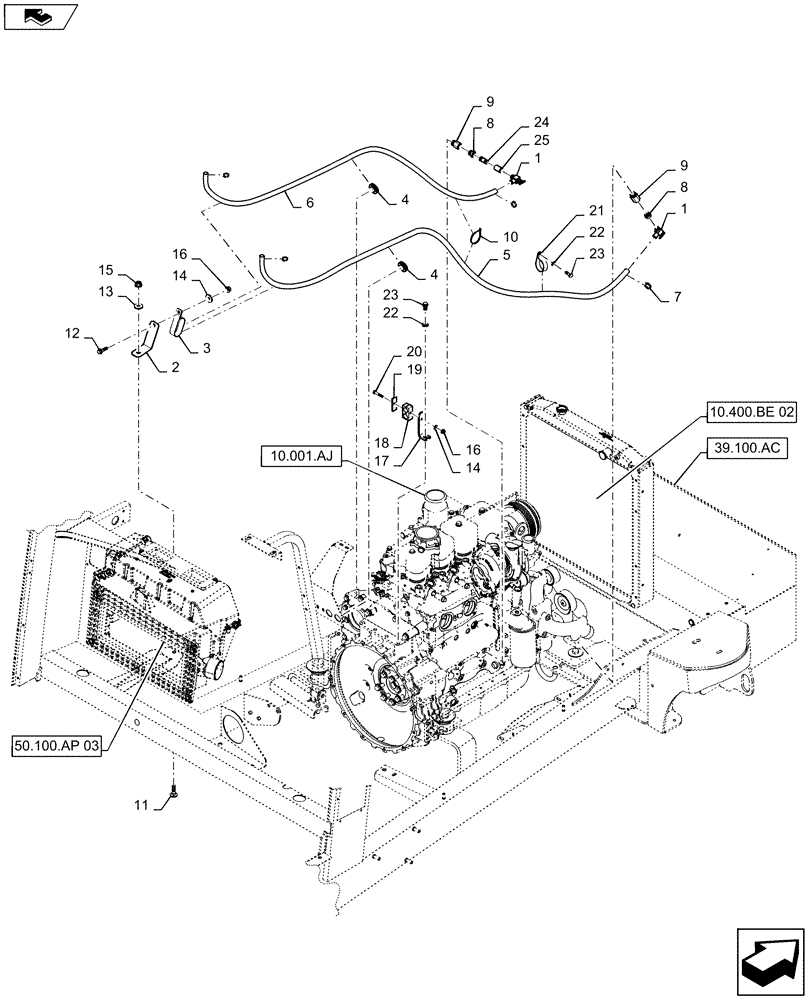

Запчасти Case IH WD1203 (50.100.AC[02]) - HEATING SYSTEM, LINES, 4 CYLINDER MACHINES (50) - CAB CLIMATE CONTROL

1

83961305

VALVE

2шт.

2

87367603

ANGLE

1шт.

3

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

4

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

2шт.

5

87567191

HEATER HOSE,5/8” Bulk Roll 500 FT, Supply

Cut To Length, 2.8M

1шт.

6

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Cut To Length, 2.2M

1шт.

7

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

8

87572

BUSHING

2шт.

9

87687370

HYD CONNECTOR,½”-14 NPTF ID x M18 x 1.5 Thd. OD x 1.67” Long

2шт.

10

249730

SECURING STRAP,8" L

1шт.

11

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

17

87390120

ANGLE

1шт.

18

86900725

CLAMP

1шт.

19

87053042

PLATE

1шт.

20

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

21

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

23

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

24

88093

NIPPLE

1шт.

25

88982

COUPLING

1шт.
