Запчасти Case IH WD1203 (41.200.AE[04]) - STEERING ASSY, GEARBOX, MOTOR, HIGH SPEED (41) - STEERING

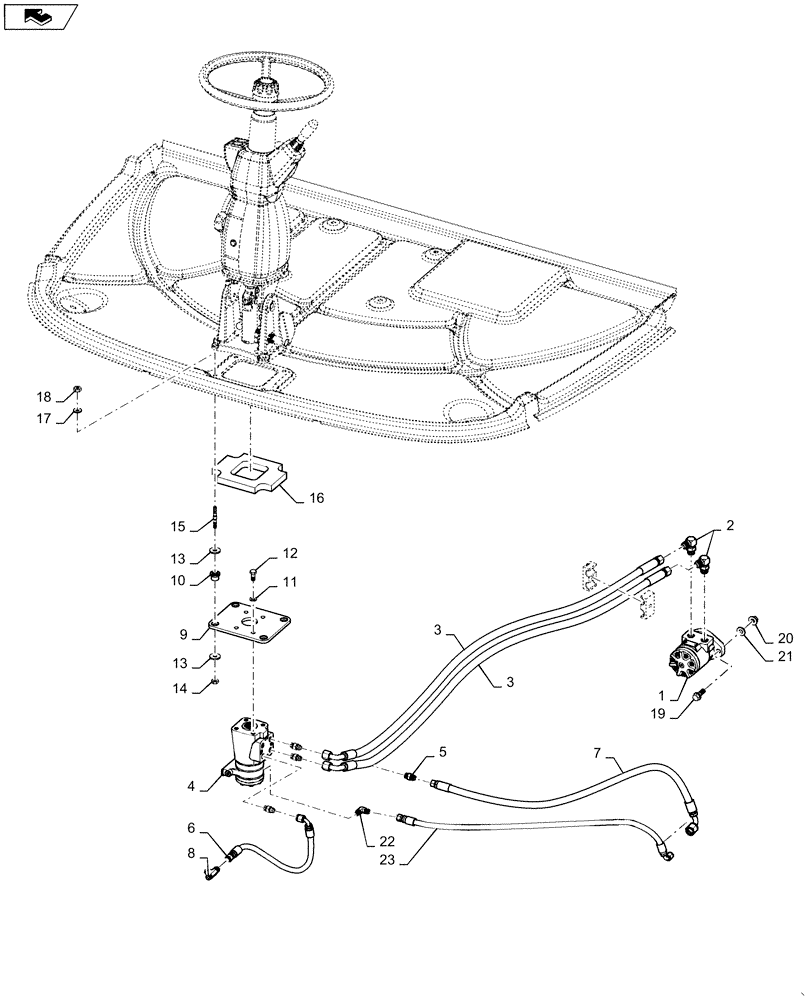

Схема запчастей Case IH WD1203 - (41.200.AE[04]) - STEERING ASSY, GEARBOX, MOTOR, HIGH SPEED (41) - STEERING
15
1
7
5
home
19
14
12
13
22
4
17
8
23
3
10
6
2
21
9
11
13
3
16
20
18

Артикул

Название

Примечание

Количество

1

47515828

HYDRAULIC MOTOR

Steering

1шт.

2

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

2шт.

3

47434830

HYDRAULIC HOSE

R/L Steering

2шт.

4

47515830

STEERING VALVE

Dual Speed

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

3шт.

6

47722958

HOSE

Steering Valve Charge Pressure

1шт.

7

47434823

HYDRAULIC HOSE

Steering Valve Tank

1шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

84075217

PLATE

1шт.

10

601062

ISOLATOR

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

13

86012639

WASHER,10.3mm ID x 31.8mm OD x 3.2mm Thk

8шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

15

84432508

STUD,M8 x 71

4шт.

16

86974950

GASKET

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

21

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

22

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

23

47434825

HYDRAULIC HOSE

Steering Valve To 3 Speed Control

1шт.

Выбрано товаров: 23
