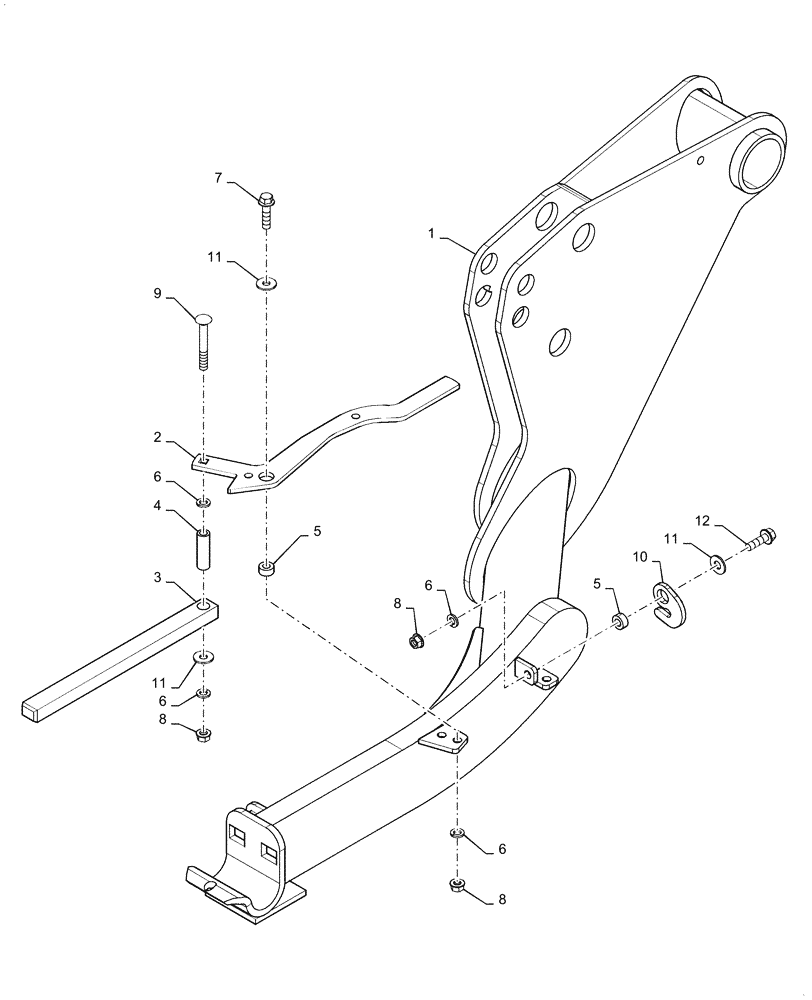

Запчасти Case IH WD1203 (37.110.AE) - LIFT ARM, LATCH HOOK, DRAPER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47795931

ARM

LH, Draper

1шт.

1

47795932

ARM

RH, Draper

1шт.

1a

87649911

BUSHING,51.05mm ID x 63.65mm OD x 50.8mm L

Lift Arm

1шт.

2

87569777

HANDLE

2шт.

3

87011324

LOCK PIN

2шт.

4

84265307

TUBE SPACER,10.3mm ID x 15.9mm OD x 36.5mm L

2шт.

5

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

4шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

7

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

9

280722

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

2шт.

10

47610296

LATCH

Header, Quick

2шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

12

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.
