(37.110.AE[02]) - LIFT ARM, LESS HEADER QUICK LATCH, 4 CYLINDER, NON DRAPER

Запчасти Case IH WD1203 (37.110.AE[02]) - LIFT ARM, LESS HEADER QUICK LATCH, 4 CYLINDER, NON DRAPER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

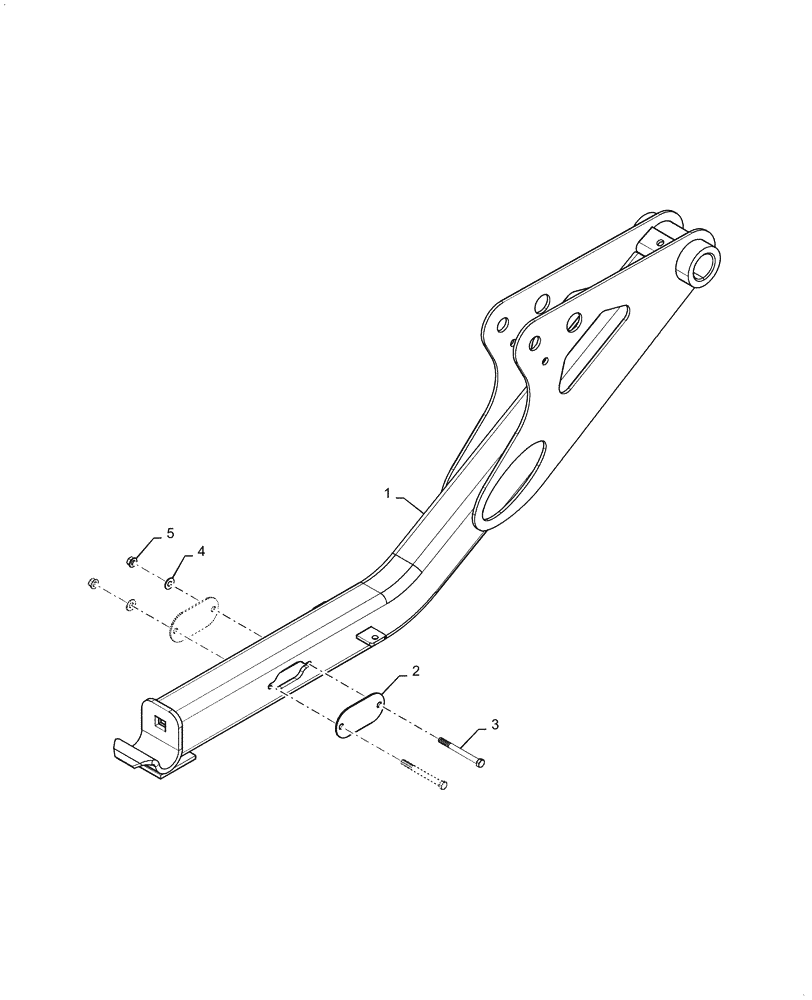

Схема запчастей Case IH WD1203 - (37.110.AE[02]) - LIFT ARM, LESS HEADER QUICK LATCH, 4 CYLINDER, NON DRAPER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
3
5
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47458660

LIFT ARM

Dark Grey, Non Draper, Serial Range: -YGG677503

2шт.

1

48021134

ARM

Dark Grey, Non Draper, Start Serial: YGG677504

2шт.

2

87031061

PLATE

4шт.

3

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

Выбрано товаров: 6
