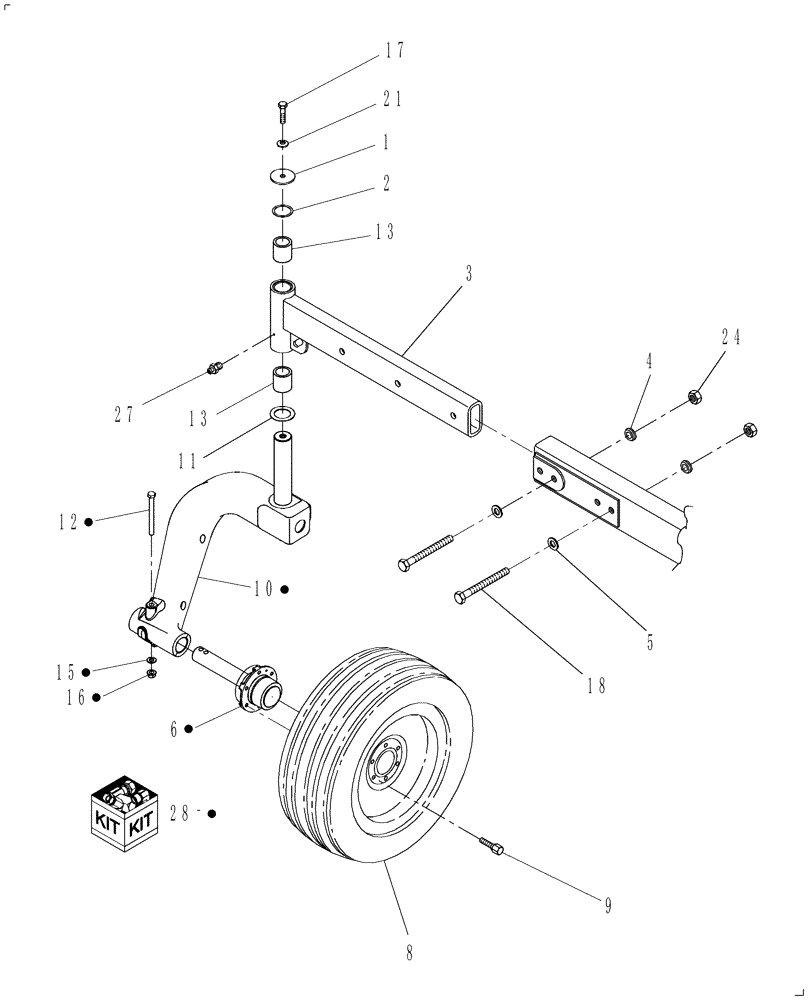

Запчасти Case IH WD1203 (05.02[3]) - REAR AXLE EXTENSION AND SINGLE CAST TAIL WHEEL ARM, DRAPER READY, FROM PIN YAG663501 (05) - REAR AXLE

1

86502976

WASHER

2шт.

2

86546256

WASHER,64.29mm ID x 82.55mm OD x 1.7mm Thk

2шт.

3

86597153

EXTENSION ASSY.

LH, Red

1шт.

Left Hand Shown

1шт.

3

86626612

EXTENSION ASSY.

LH, CNH Gray

1шт.

3

87052394

EXTENSION ASSY.

RH, Red, Not Illustrated

1шт.

3

87052395

EXTENSION ASSY.

RH, CNH Gray, Not Illustrated

1шт.

4

87052311

SPACER

4шт.

5

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

4шт.

6

84349225

HUB

Hub and Spindle, Dk Gr

2шт.

8

PL

PROCURE LOCALLY

Tire and Wheel, 14L - 16.1 Silver - See Fig. 05.02(1) for wheel

2шт.

9

198056

WHEEL BOLT,1/2" - 20 x 1.031"

12шт.

10

84305224

ARM

LH Arm

1шт.

10

84305222

ARM

RH Arm, Not Illustrated

1шт.

11

86581947

WASHER

2шт.

12

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

2шт.

13

87650301

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

4шт.

15

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

16

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

17

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

18

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

4шт.

21

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

24

9849633

NUT,1"-8, G5

4шт.

27

87414

LUBE NIPPLE,1/4" - 28

2шт.

28

84282410

KIT

Single Arm Support, Also shown on Fig. 18.32

1шт.
