1
87652184
DAMPER
1шт.
2
87643062
GEARBOX
1шт.
3
86623595
RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk
1шт.
4
9617878
SNAP RING,#98, Ext
4шт.
5
86635383
GEAR
1шт.
6
87393158
SUPPORT
1шт.
7
9706914
O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro
2шт.
8
84257940
HYDRAULIC PUMP
Non-Draper
1шт.
8
84257940R
REMAN-HYDROSTAT PUMP
Tandem, WD1203 Less Draper. Does Not Include Gear Pump
1шт.
8
84257940C
CORE-HYDROSTAT PUMP
Return Number
1шт.
8
84520628
HYDROSTATIC PUMP
Draper
1шт.
9
87643063
COVER
1шт.
10
86000810
CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type
1шт.
11
80781
PLUG,3/8" - 18 NPT
1шт.
12
80775
DRAIN PLUG,1/4" - 18 NPT
1шт.
14
87383130
SUPPORT
1шт.
15
87588019
PUMP
1шт.
15
87588019R
REMAN-HYD PUMP
1шт.
15
87588019C
CORE-HYDRAULIC PUMP
Return Number
1шт.
16
86974942
BUSHING
Improved, No undercut, Can Be Used in Older Pumps to Replace 86537268
1шт.
17
88472
ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male
1шт.
18
509968
3 WAY CONNECTION
1шт.
19
509939
PLUG
1шт.
20
686790
REDUCER
1шт.
21
87016893
FITTING,1/4" Hose X 1/4" NPTF Beaded
1шт.
22
86637701
HOSE CLAMP,12.45mm - 12.95mm
1шт.
23
87280926
FUEL HOSE
1шт.
24
86635384
GEAR
1шт.
25
84156145
BALL BEARING,50mm ID x 90mm OD x 20mm W
1шт.
25
84156144
BALL BEARING,40mm ID x 68mm OD x 15mm W
1шт.
26
87658697
GEAR SHAFT
1шт.
27
529070
CABLE TIE,368.3mm L
1шт.
28
854071
BREATHER
1шт.
30
87015575
BOLT,Hex, M10 x 85mm, Cl 8.8
3шт.
31
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
4шт.
32
120073
BOLT,Hex, M10 x 86.58mm, Cl 8.8
11шт.
33
9804261
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
1шт.
35
9828498
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
1шт.
36
43139
BOLT,M10 x 1.5 x 25mm, Cl 8.8
8шт.
37
58102
WASHER
4шт.
38
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
21шт.
40
NSS
NOT SOLD SEPARAT
1шт.
46
9840491
MAGNET
1шт.

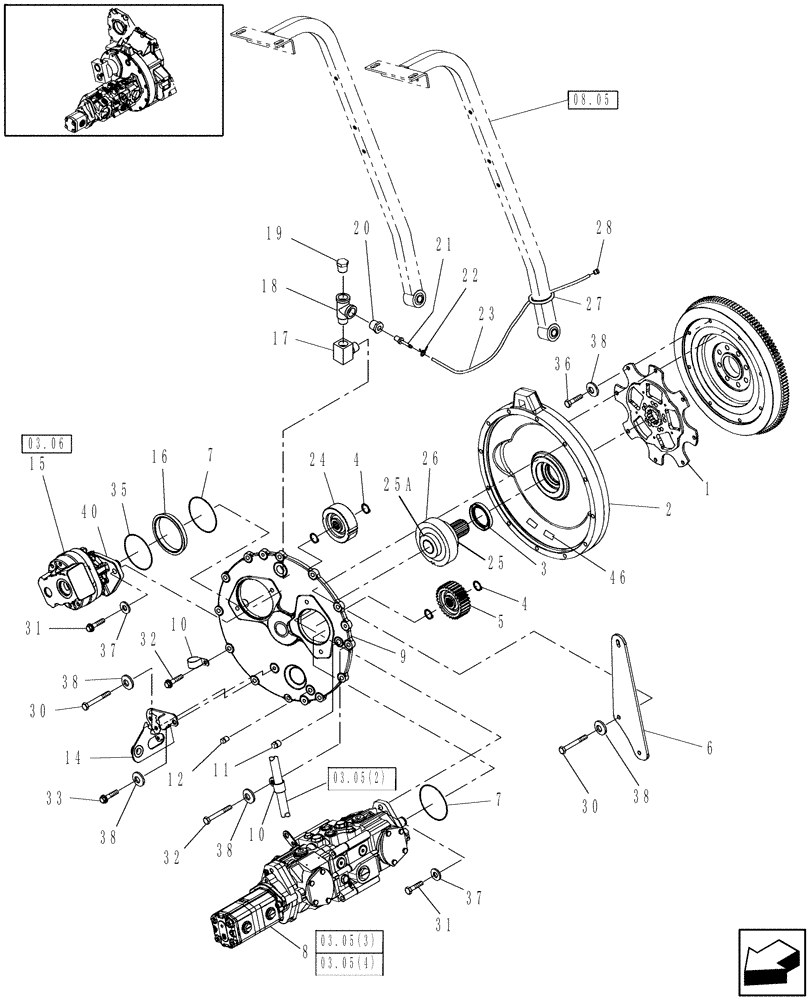

![Схема запчастей Case IH WD1203 - (03.10[2]) - FLYWHEEL AND GEARBOX, FROM YCG667001 (03) - TRANSMISSION](https://partsell.ru/storage/images/caseih/346283.png)
