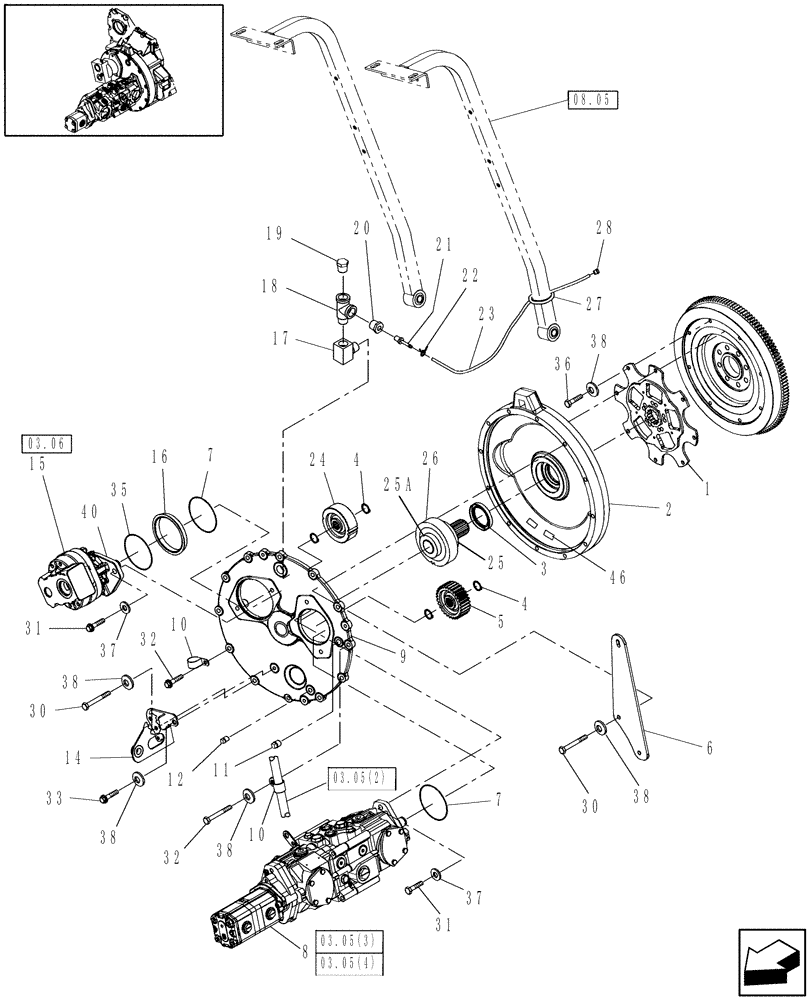

Запчасти Case IH WD1203 (03.10[1]) - FLYWHEEL AND GEARBOX, P.I.N. Y8G661655 & AFTER (03) - TRANSMISSION

1

87652184

DAMPER

1шт.

2

87643062

GEARBOX

1шт.

3

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

1шт.

4

9617878

SNAP RING,#98, Ext

4шт.

5

86635383

GEAR

1шт.

6

87393158

SUPPORT

1шт.

7

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

8

87038911

HYDRAULIC PUMP

1шт.

8

84257940R

REMAN-HYDROSTAT PUMP

Does Not Include Gear Pump

1шт.

8

84257940C

CORE-HYDROSTAT PUMP

Return Number

1шт.

9

87643063

COVER

1шт.

10

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

11

80781

PLUG,3/8" - 18 NPT

1шт.

12

80775

DRAIN PLUG,1/4" - 18 NPT

1шт.

14

87383130

SUPPORT

1шт.

15

87588019

PUMP

1шт.

15

87588019R

REMAN-HYD PUMP

WD1203 (9/07-)

1шт.

15

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

86974942

BUSHING

1шт.

Apply sealant, 732 Dow Corning or 598 Loctite, to Mounting flange of ref 15 and bushing prior to assy.

1шт.

17

88472

ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

18

509968

3 WAY CONNECTION

1шт.

19

509939

PLUG

1шт.

20

686790

REDUCER

1шт.

21

87016893

FITTING,1/4" Hose X 1/4" NPTF Beaded

1шт.

22

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

23

87280926

FUEL HOSE

1шт.

24

86635384

GEAR

1шт.

25

84156145

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

25a

84156144

BALL BEARING,40mm ID x 68mm OD x 15mm W

1шт.

26

87658697

GEAR SHAFT

1шт.

27

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

28

854071

BREATHER

1шт.

30

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

3шт.

31

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

32

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

11шт.

33

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

35

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

36

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

37

58102

WASHER

4шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

21шт.

46

9840491

MAGNET

1шт.

60

84137676

DECAL

Oil Change, English

1шт.

Not Illustrated, Refer to Decal Figure for Decal Placement

1шт.

61

84155465

DECAL

Oil Change Tag, English

1шт.

Not Illustrated, Refer to Decal Figure for Decal Placement

1шт.
