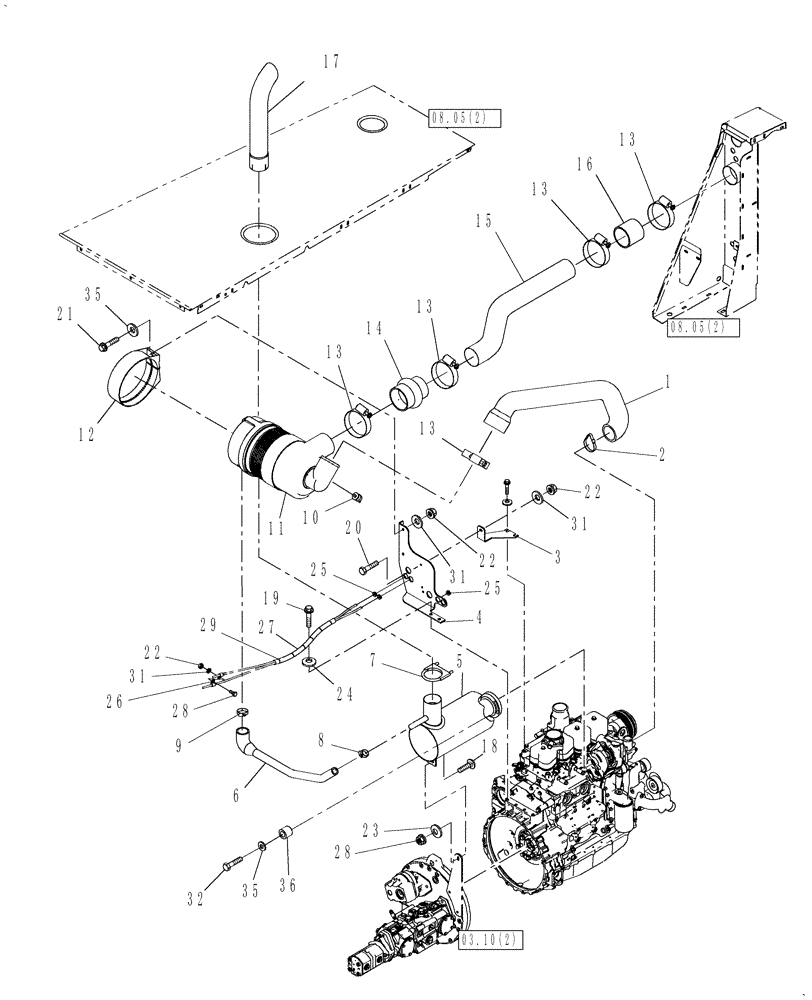

Запчасти Case IH WD1203 (02.05[2]) - AIR INTAKE, 10" AIR CLEANER & EXHAUST SYSTEM, 4 CYL (02) - ENGINE EQUIPMENT

1

87366633

FLEXIBLE HOSE

1шт.

2

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

3

87025864

SUPPORT ASSY.

1шт.

4

87545048

SUPPORT ASSY.

1шт.

5

87683534

MUFFLER,Aspirated

1шт.

6

86974109

HOSE,25.40 mm ID, 50.80 mm ID x 875.00 mm, SAE J200

1шт.

7

86511573

CLAMP,3-5/8”

1шт.

8

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

9

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

10

87013666

SWITCH,Air Filter Restriction

1шт.

11

87047326

AIR CLEANER

10 Inch

1шт.

11

390318A1

CLEANER ASSY.

10 Inch

1шт.

11

8604711

COVER

Used W/ 390318A1

1шт.

11

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Engine, Secondary

1шт.

11

87682990

AIR FILTER,Primary, 105.9mm ID x 207.6mm OD x 409.5mm L

Engine, Primary

1шт.

12

87047322

BRACKET

1шт.

13

9706924

HOSE CLAMP,103.1mm - 127mm

5шт.

14

87047481

HOSE,101.6 mm ID, 114.3 mm ID x 152.4 mm, SAE J200 3CA 710

1шт.

15

86638089

TUBE,101.60 mm OD x 939.90, 262.30 mm L

1шт.

16

87031908

HYD CONNECTOR

1шт.

17

87057491

EXHAUST SYSTEM PIPE

1шт.

18

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

19

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

20

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

21

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

WD1203, WD2303

5шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

25

625670

GROMMET

WD2303

3шт.

25

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

WD1203, WD1903

1шт.

26

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

WD2303

2шт.

26

84484346

STRAP,328mm L

WD1203, WD1903

1шт.

27

87384873

HOSE

Plastic Convoluted Conduit, 6' Length

1шт.

28

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

29

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

WD2303

1шт.

30

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

32

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

35

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

2шт.

36

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

3шт.

37

80681

LOCK WASHER,5/16"

3шт.
