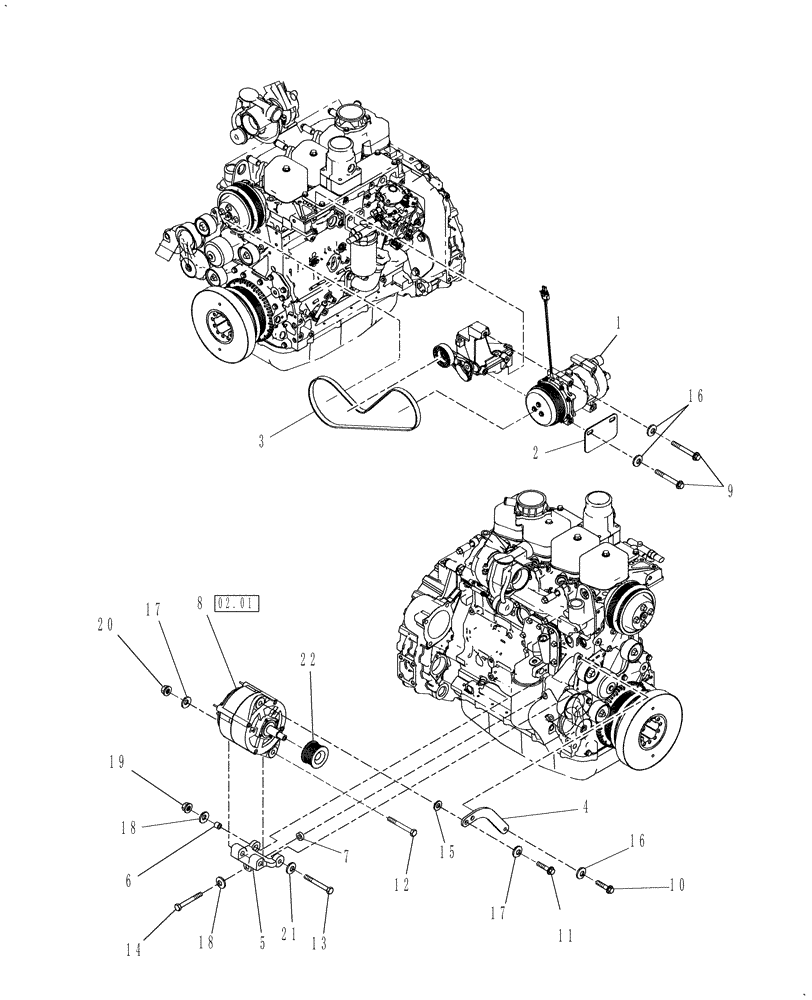

Запчасти Case IH WD1203 (02.02[1]) - AC COMPRESSOR AND DRIVE, ALTERNATOR AND MOUNTING (02) - ENGINE EQUIPMENT

1

87649534

AIRCOND. COMPRESSOR

Includes: Ref. 23

1шт.

2

87527032

MOUNTING PLATE

1шт.

3

87709228

BELT,14.24 mm W, 4 Ribs

A/C Drive

1шт.

4

84140333

BRACKET MONITOR EQUI

Alternator

1шт.

5

87060348

MOUNTING PARTS

Alternator

1шт.

6

117441

SPACER

1шт.

7

87060530

SUPPORT

1шт.

8

87720193

ALTERNATOR

150 Amp

1шт.

Hardware for Pulley is Included with Ref. 8

1шт.

87720193R

REMAN-ALTERNATOR

WD1203 (9/07-)

1шт.

87720193C

CORE-ALTERNATOR

Return Number

1шт.

9

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

3шт.

10

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

11

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

12

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

13

86507010

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

1шт.

14

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

20

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

21

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

22

86976071

PULLEY,66mm OD

Alternator

1шт.

23

87656093

CLUTCH

1шт.

Not Illustrated

1шт.
