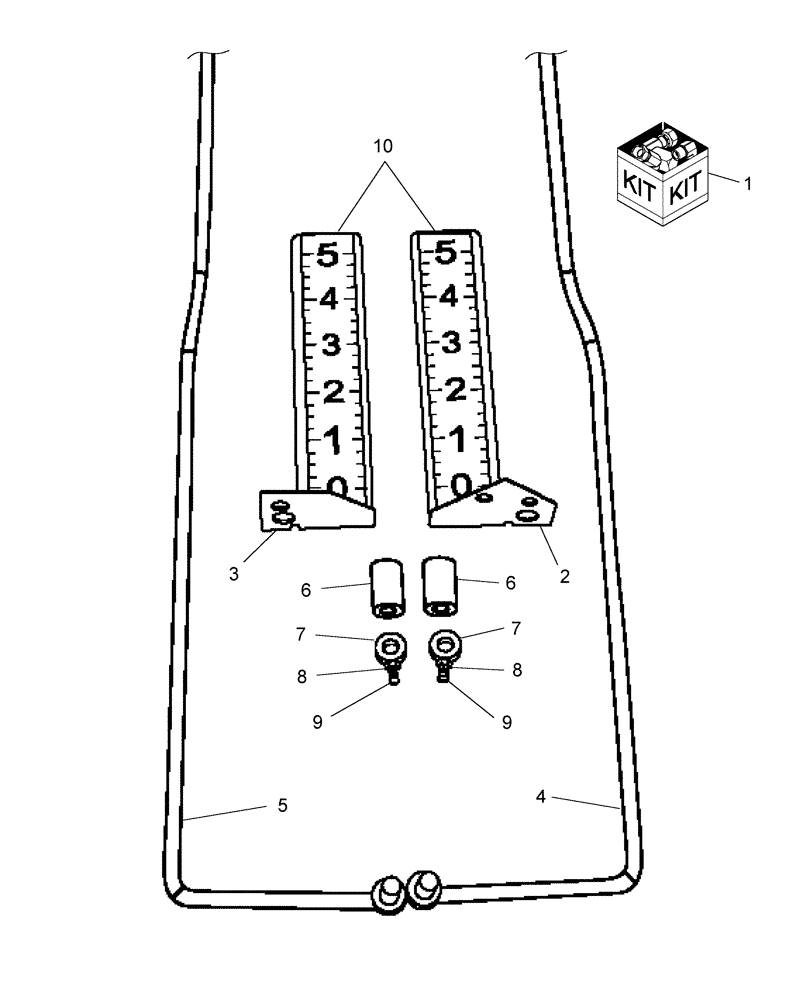

Запчасти Case IH WD1203 (18.18) - HEIGHT INDICATOR KIT, DRAPER HEADER ONLY (18) - ACCESSORIES

1

87536639

DIA KIT, HARVESTER

Height Indicator, Includes: Ref. 2 - 17 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87546447

ANGLE

Angle, LH, Includes: Ref. 10

1шт.

3

87546448

ANGLE

Angle, RH, Includes: Ref. 10

1шт.

4

87537573

ROD

LH

1шт.

5

87537593

ROD

RH

1шт.

6

86640801

SPACER,13.1mm ID x 25.53mm OD x 41.27mm L

2шт.

7

87561388

COLLAR

Set

2шт.

8

87305

JAM NUT,Jam, 1/4"-20, G2

2шт.

9

280194

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

2шт.

10

87546131

DECAL

2шт.

11

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

Not Shown

1шт.

12

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

Not Shown

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

Not Shown

1шт.

14

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

Not Shown

1шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

Not Shown

1шт.

16

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

Not Shown

1шт.

17

80430

SET SCREW,1/4" - 20 x 1/4"

2шт.

Not Shown

1шт.
