Запчасти Case IH WD1203 (18.17) - DIA. AUXILIARY ENGINE-MOUNTED HYDRAULIC DRIVE KIT (18) - ACCESSORIES

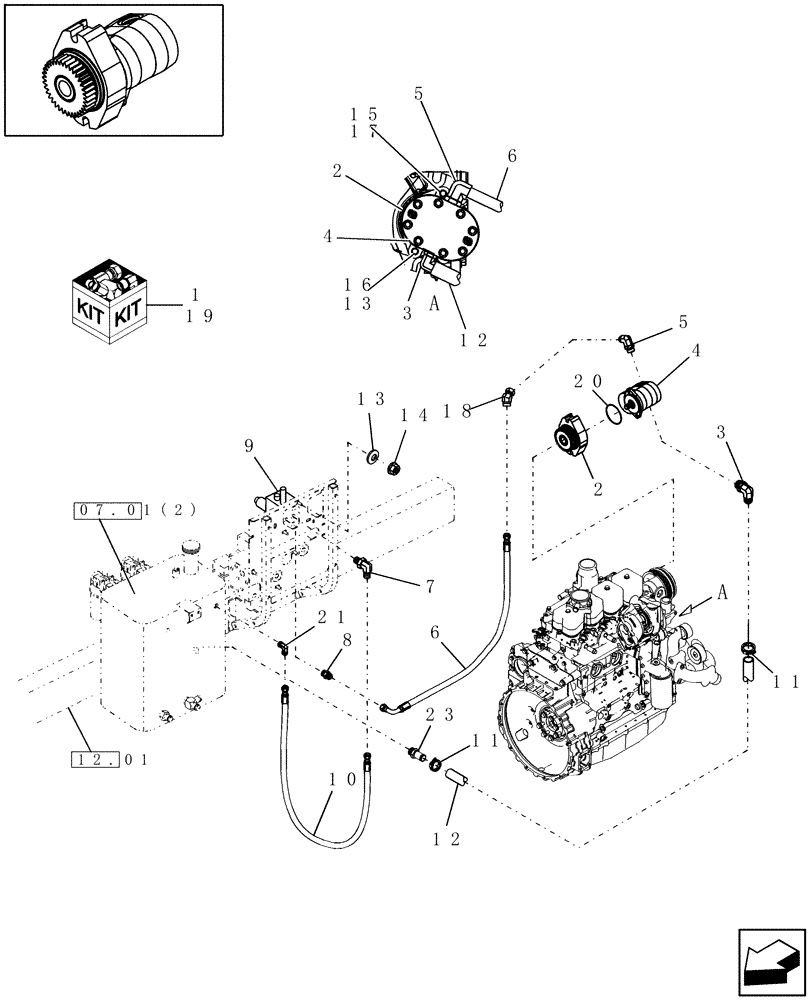

Схема запчастей Case IH WD1203 - (18.17) - DIA. AUXILIARY ENGINE-MOUNTED HYDRAULIC DRIVE KIT (18) - ACCESSORIES
12
3
1
5
7
2
2
4
8
15
13
a
12.01
18
out
07.01(2)
23
13
p
21
10
6
12
11
19
20
5
4
a
in
14
17
16
t
9
6
3
11

Артикул

Название

Примечание

Количество

1

87629027

KIT

Engine-Mounted Auxiliary Hydraulic Drive, Includes: Ref. 2 - 18 & 20 - 23 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87428636

KIT

Kit

1шт.

3

858997

ELBOW

Includes: Ref. 23

1шт.

4

87050689

HYDRAULIC PUMP,22.8 CC

Gear, 22cc, Includes: Ref. 19

1шт.

5

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Includes: Ref. 26

1шт.

6

87032603

HOSE ASSY.

1шт.

7

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Includes: Ref. 24

1шт.

8

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Includes: Ref. 24

1шт.

9

86977332

HYDRAULIC VALVE

Auxiliary

1шт.

10

87043285

HOSE ASSY.

1шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

12

87032237

HOSE,1.00" ID x 44.00", SAE 100R4

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

2шт.

16

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

18

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

19

87340205

SEAL KIT

Services Ref. 4

1шт.

20

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

21

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

Includes: Ref. 25

1шт.

22

86550731

REDUCER

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

25

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

26

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 27
