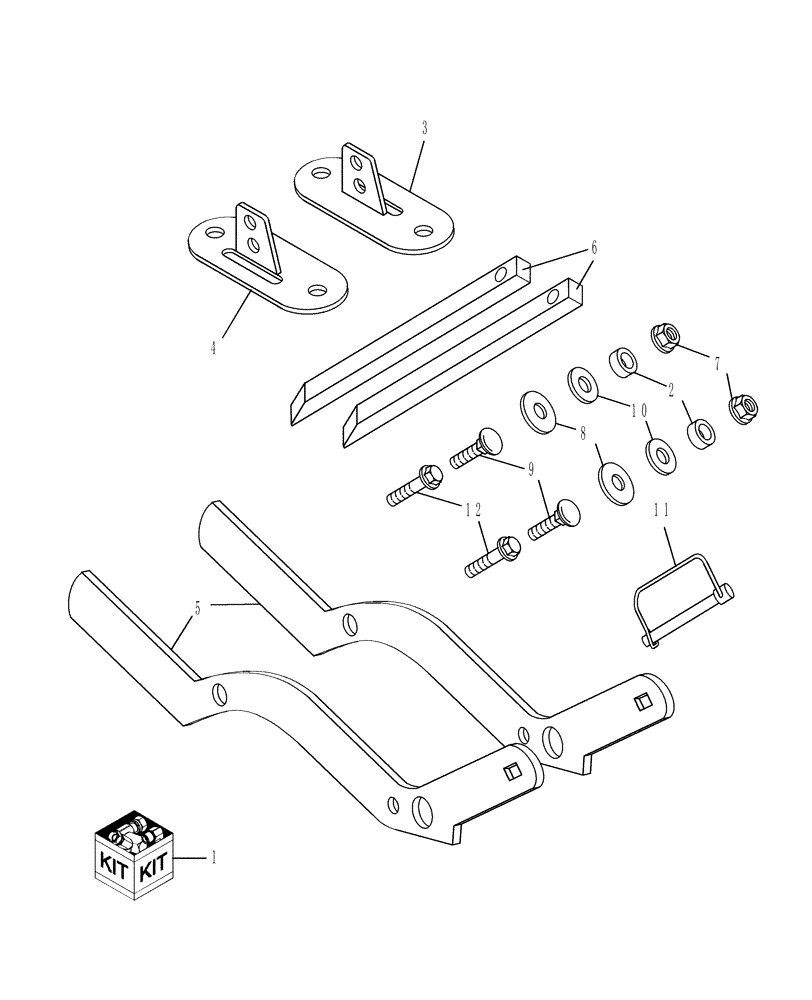

Запчасти Case IH WD1203 (18.12) - QUICK LATCH KIT (18) - ACCESSORIES

1

87560864

KIT

Quick Latch, Includes: Ref. 2 - 12 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87042679

SPACER

2шт.

3

87034769

PLATE ASSY.

Right Hand

1шт.

4

87011329

PLATE ASSY.

Left Hand

1шт.

5

87560861

KIT

Handle

2шт.

6

87011324

LOCK PIN

2шт.

7

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

8

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Hardened, 3/8"

2шт.

9

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

10

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

2шт.

11

86837801

PIN,7.93mm OD x 44.45mm L

Snap

2шт.

12

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.
