Запчасти Case IH WD1203 (18.11) - ROTARY BEACON (18) - ACCESSORIES

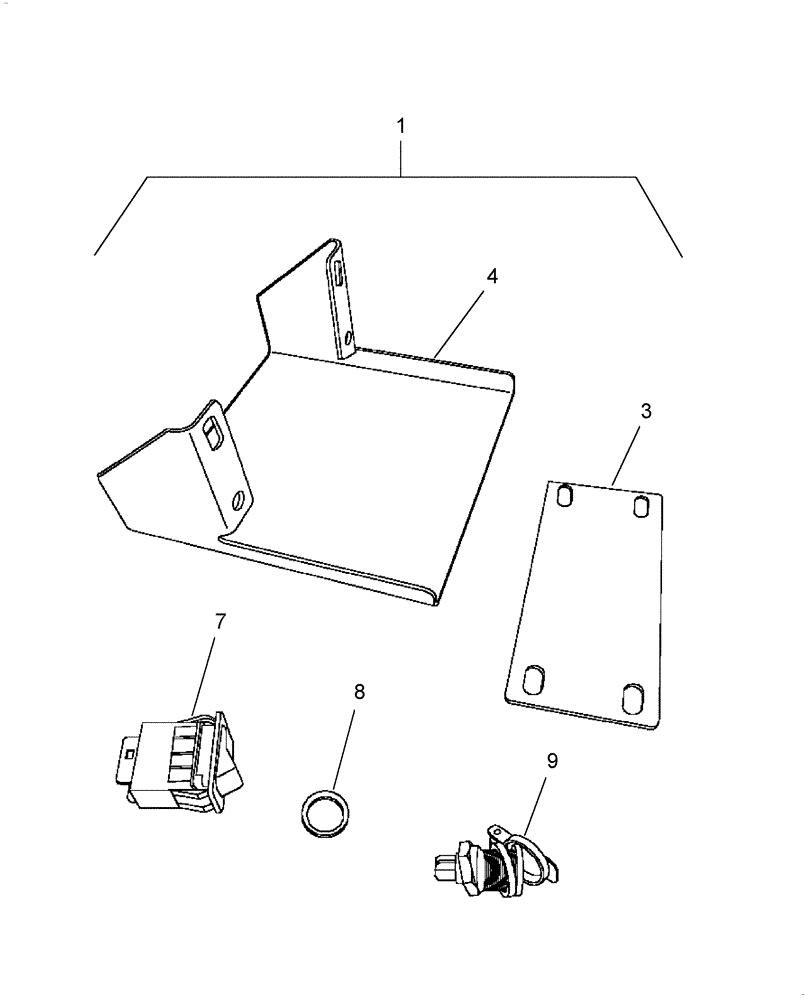

Схема запчастей Case IH WD1203 - (18.11) - ROTARY BEACON (18) - ACCESSORIES
7
1
3
4
8
9

Артикул

Название

Примечание

Количество

1

87027859

DIA KIT, HARVESTER

Beacon Mount, Includes: Ref. 2 - 10 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87041198

HARNESS

1шт.

Not Illustrated

1шт.

3

87020041

PLATE

1шт.

4

87020040

SUPPORT

1шт.

5

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

Not Illustrated

1шт.

6

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

4шт.

Not Illustrated

1шт.

7

84320234

BEACON SWITCH

1шт.

8

82016322

O-RING,3.53mm Thk x 15.47mm ID

1шт.

9

84191453

SOCKET,12/24V, 20A

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

Not Illustrated

1шт.

11

2010665

BEACON

Lens 2010668

1шт.

Not Included In Kit

1шт.

2010668

LENS

1шт.
