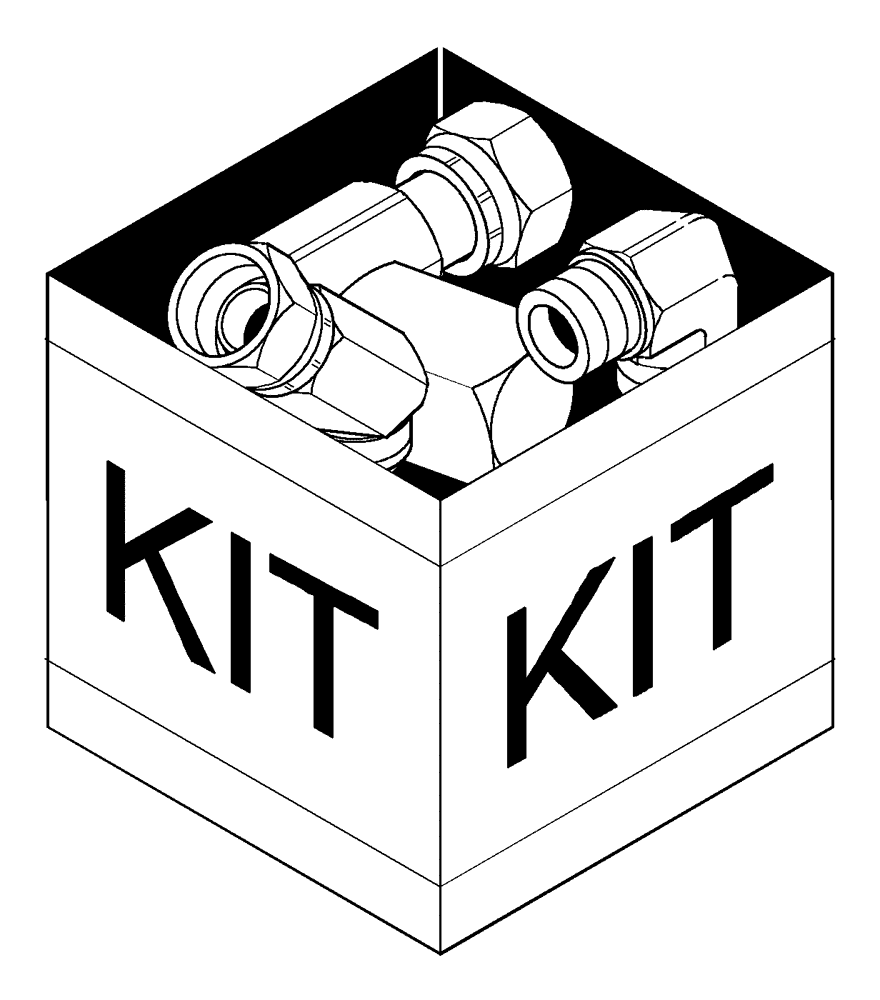

Запчасти Case IH WD1203 (18.07[1]) - DRAPER ADAPTER KIT (18) - ACCESSORIES

1

87532169

DIA KIT, HARVESTER

Draper Adapter, Includes: Ref. 2 - 83

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

6шт.

3

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

3шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

5

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

6

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

7шт.

7

87825

NUT,#10-32

2шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

9

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

10

88695

LOCK WASHER,1 1/8"

2шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

24шт.

14

191823

WASHER

10шт.

15

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

16

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

18

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

4шт.

19

705914

ORIFICE

1шт.

20

9601709

HYD CONNECTOR

1шт.

21

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

3шт.

22

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.

23

86521608

FLANGE NUT,Flg, 5/8"-11, G5

24шт.

24

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

24шт.

25

86538216

BOLT,Hex, 1-1/8" x 4", Gr 5

2шт.

26

86566989

CABLE TIE,208mm L

CABLE STRAP

20шт.

27

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

28

86629544

NUT,5/16” – 18, GR B

2шт.

29

87545542

CONTROL VALVE

Height

1шт.

30

87023836

SWITCH

Rocker, Reel Speed

1шт.

31

87023837

SWITCH

Rocker, Belt Speed

1шт.

32

87023838

SWITCH

1шт.

33

87036368

DUST CAP

1шт.

34

87039638

HOUSING

1шт.

35

87041192

HARNESS

DR-C

1шт.

36

87041193

HARNESS

DR-F

1шт.

37

87041196

HARNESS

RS-C

1шт.

38

87041305

HARNESS

CN-F

1шт.

39

87041306

HARNESS

CN-C

1шт.

40

87043583

HOSE ASSY.

1шт.

41

87044412

HEADLESS PIN

2шт.

42

87044433

SPACER

4шт.

43

87044434

LINK ASSY.

2шт.

44

87048685

SWITCH

1шт.

45

87050045

COUPLING, QUICK, FEM

1шт.

46

87052733

CYLINDER ASSY.

2шт.

47

87052974

PLATE ASSY.

2шт.

48

87052976

PLATE ASSY.

2шт.

49

87054010

WIRE HARNESS

DRA-F

1шт.

50

87054011

WIRE HARNESS

DRB-F

1шт.

51

87054718

HOSE ASSY.

1шт.

52

87054719

HOSE ASSY.

1шт.

53

87054720

HOSE ASSY.

1шт.

54

87054721

HOSE ASSY.

1шт.

55

87054722

HOSE,0.38" ID x 54.50", SAE 100R6

1шт.

56

87054857

WIRE HARNESS

DR-F

1шт.

57

87740293

SOLENOID VALVE

Cartridge Check

1шт.

58

87058188

PLATE

4шт.

59

87058223

HOSE ASSY.

2шт.

62

87058225

HOSE,0.38" ID x 16.00", SAE 100R16

2шт.

61

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

62

87398498

HYDRAULIC VALVE

Flow Divider

1шт.

63

87044567

PLATE

1шт.

64

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

65

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

66

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

67

87055315

HOSE,0.38" ID x 18.00"

1шт.

68

87528539

WIRE HARNESS

DV-CD6

1шт.

69

87528540

WIRE HARNESS

DV-FD6

1шт.

70

87532145

WIRE HARNESS

DRG.6

1шт.

71

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

2шт.

72

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

73

86563609

CLAMP

4шт.

74

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

75

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

76

87053042

PLATE

2шт.

77

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

78

86564908

BOLT

2шт.

79

86564909

WASHER

2шт.

80

NH291525

EDGE

2шт.

81

87352777

SOLENOID

1шт.

82

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

83

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.
