Запчасти Case IH WD1203 (18.03[4]) - SICKLE HEADER ADAPTER KIT, FROM PIN YAG663501 (18) - ACCESSORIES

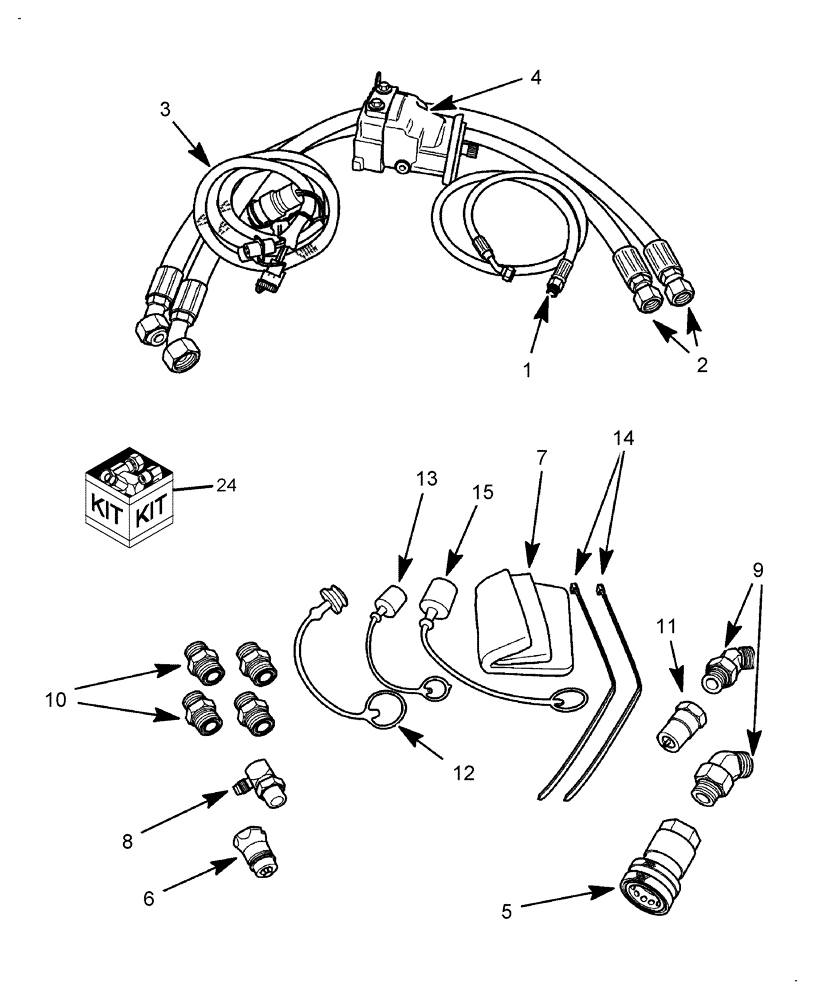

Схема запчастей Case IH WD1203 - (18.03[4]) - SICKLE HEADER ADAPTER KIT, FROM PIN YAG663501 (18) - ACCESSORIES
4
13
9
2
3
5
15
24
7
1
10
14
6
11
12
8

Артикул

Название

Примечание

Количество

1

87032252

HOSE ASSY.

68" Long

1шт.

2

87032249

HOSE ASSY.,19.05mm ID x 1447.8mm L, SAE 100R12

57" Long

2шт.

3

87030622

HARNESS

Ad

1шт.

4

86837566

HYDRAULIC MOTOR

44CC

1шт.

5

86564734

COUPLING

1шт.

6

87037008

QUICK MALE COUPLING

1шт.

7

86520217

SLEEVE

1шт.

8

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

9

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

10

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

4шт.

11

9820148

COUPLING,1-1/16" - 12

1шт.

12

87036366

DUST CAP

Plug .75

1шт.

13

86621124

DUST CAP

1шт.

14

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

15

87036367

DUST CAP

1шт.

17

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

Not Illustrated

1шт.

19

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

Not Illustrated

2шт.

20

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

Not Illustrated

2шт.

21

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

Not Illustrated

2шт.

22

9801108

SPACER

Not Illustrated

2шт.

23

9849633

NUT,1"-8, G5

Not Illustrated

2шт.

24

716965086

DIA KIT, HARVESTER

Sickle Header Adaptor, Start Year: 01-SEP-10

1шт.

Выбрано товаров: 22
