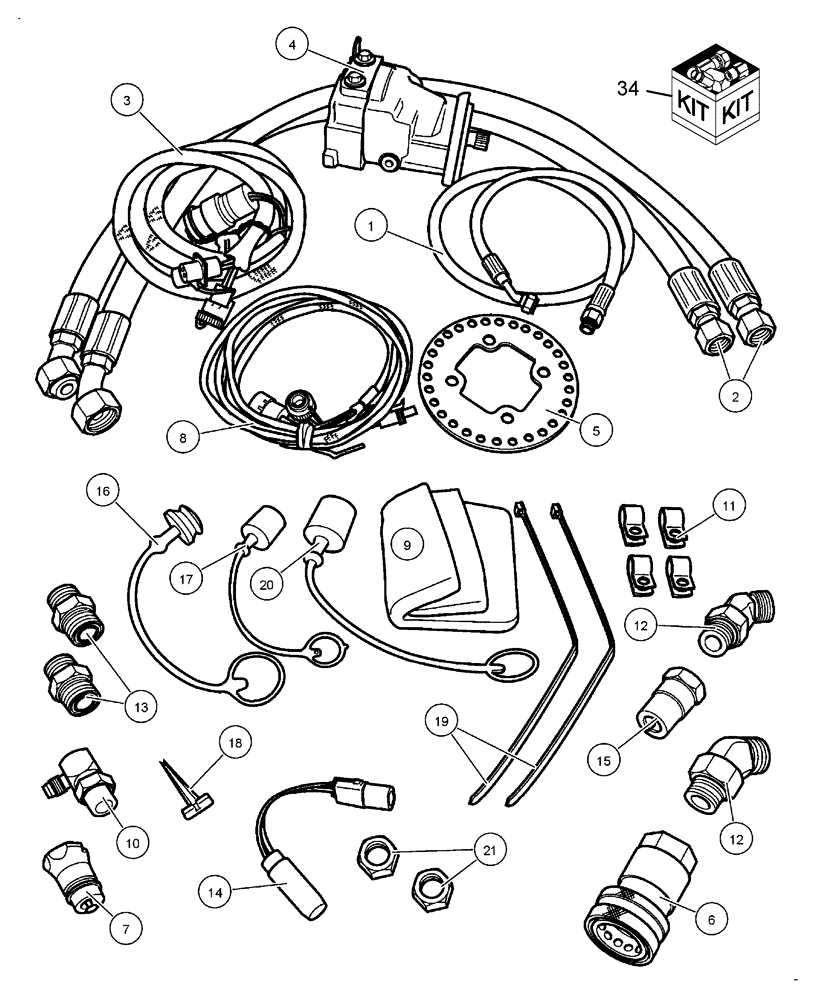

Запчасти Case IH WD1203 (18.03[3]) - SICKLE HEADER ADAPTOR KIT, FROM PIN YAG663501 (18) - ACCESSORIES

1

87032252

HOSE ASSY.

68" Long

1шт.

2

87032249

HOSE ASSY.,19.05mm ID x 1447.8mm L, SAE 100R12

57" Long

2шт.

3

87030622

HARNESS

AD

1шт.

4

86837566

HYDRAULIC MOTOR

44CC

1шт.

4

87298004

REMAN-HYD MOTOR

WD1203, WD1903, WD2303, SP Windrowers, All From PIN YAG663501

1шт.

4

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

5

86640841

DISC

1шт.

6

86564734

COUPLING

1шт.

7

87037008

QUICK MALE COUPLING

3/4-16

1шт.

8

86531286

WIRE HARNESS

Hdr Spd

1шт.

9

86520217

SLEEVE

1шт.

10

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

11

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

12

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

13

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

14

9825943

SENSOR

Magnetic

1шт.

15

9820148

COUPLING,1-1/16" - 12

Male, 3/4-14

1шт.

16

9618038

DUST CAP

Plug, 3/4"

1шт.

17

87036367

DUST CAP

3/4"

2шт.

18

380001164

GENERAL TOOL

E26

1шт.

19

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

20

86621124

DUST CAP

1.14"

1шт.

21

87313

JAM NUT,Jam, 3/4"-16, G2

Not Illustrated

2шт.

22

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

Not Illustrated

1шт.

23

9849633

NUT,1"-8, G5

Not Illustrated

2шт.

24

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

Not Illustrated

2шт.

25

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

Not Illustrated

2шт.

26

9801108

SPACER

Not Illustrated

2шт.

27

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

Not Illustrated

2шт.

31

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Not Illustrated

2шт.

29

87604521

CYLINDER BLOCK

Not Illustrated

2шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

Not Illustrated

2шт.

33

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

Not Illustrated

2шт.

34

716965076

DIA KIT, HARVESTER

Sickle HDR Adaptor, 6 CYL

1шт.

From PIN YAG663501

1шт.
