Запчасти Case IH WD1203 (18.03[2]) - SICKLE HEADER ADAPTER KIT (18) - ACCESSORIES

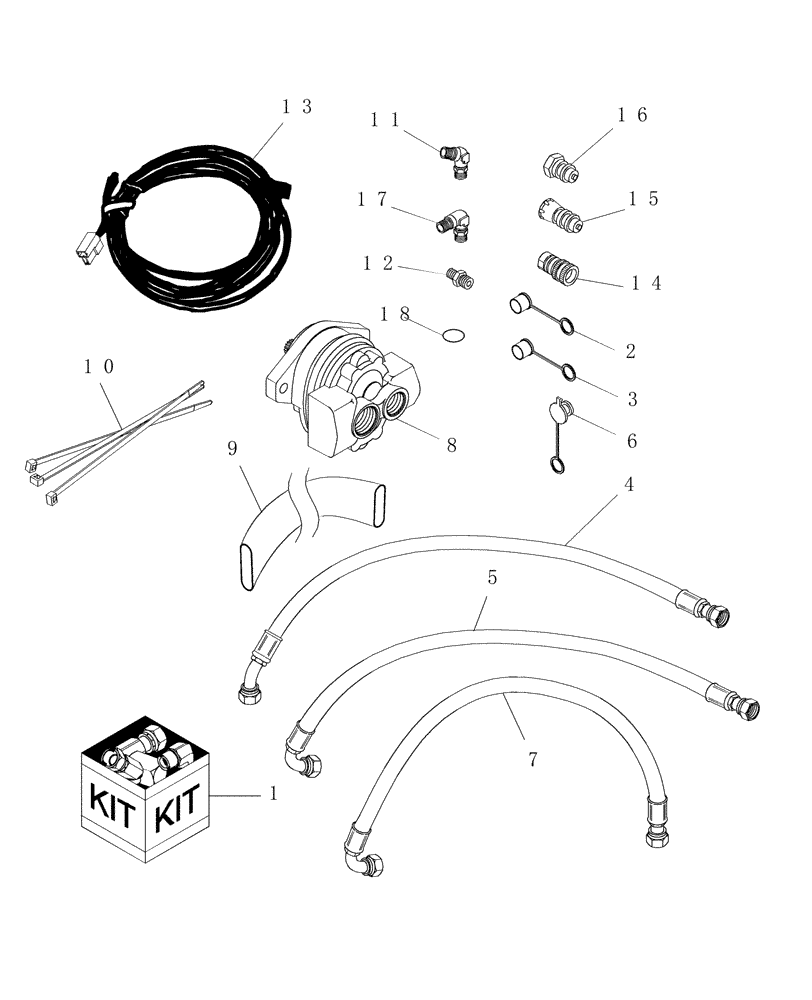

Схема запчастей Case IH WD1203 - (18.03[2]) - SICKLE HEADER ADAPTER KIT (18) - ACCESSORIES
18
3
9
15
12
1
10
16
14
6
2
17
8
7
4
13
5
11

Артикул

Название

Примечание

Количество

1

716965046

DIA KIT, HARVESTER

Sickle Header Adapter For HDX Series 2

1шт.

1

716528036

DIA KIT, HARVESTER

Sickle Header Adapter For HDX121, HDX141, HDX161, 181

1шт.

2

87036367

DUST CAP

3/4"

1шт.

3

86621124

DUST CAP

1шт.

4

87032252

HOSE ASSY.

3/8" ID

1шт.

5

87032249

HOSE ASSY.,19.05mm ID x 1447.8mm L, SAE 100R12

3/4" ID, 1.24" OD, 87029377 (2), 87029375 (1)

1шт.

6

87036366

DUST CAP

Plug, 3/4"

1шт.

7

87032250

HOSE ASSY.

3/4" ID, 1.10" OD

1шт.

Included With Kit 716528036

1шт.

8

86837566

HYDRAULIC MOTOR

For Component Breakdown, Refer To Fig. 07.09[02]

1шт.

Included With Kit 716965046

1шт.

8

87298004

REMAN-HYD MOTOR

WD1903, SP Windrower

1шт.

8

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

86516482

HYDRAULIC MOTOR

For Component Breakdown, Refer To Fig. 07.09[01]

1шт.

Included With Kit 716528036

1шт.

8

86643697

REMAN-HYD MOTOR

Reman Motor (Ports Exit Rear Or Pump)

1шт.

8

86643698

CORE-MOTOR HYDRAULIC

Return Number

1шт.

9

86520217

SLEEVE

1шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

11

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

45°; Includes: O-Rings

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

12

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Straight, 3/4" Tube ORFS - 3/4" Tube ORB; Includes: O-Rings, Ref. 11

4шт.

13

87030622

HARNESS

Wire, AD

1шт.

14

86564734

COUPLING

1шт.

15

87037008

QUICK MALE COUPLING

-8STOR

1шт.

16

9820148

COUPLING,1-1/16" - 12

1шт.

17

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Includes: O-Ring

1шт.

Included With Kit 716965046

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

1шт.

Included With Kit 716528036

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

19

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

2шт.

Not Shown

1шт.

20

492-11100

LOCK WASHER,1"

2шт.

Not Shown

1шт.

21

495-11106

WASHER,1", SAE

2шт.

Not Shown

1шт.

22

9801108

SPACER

2шт.

Not Shown

1шт.

23

425-1016

NUT,1"-8, G5

2шт.

Not Shown

1шт.

Выбрано товаров: 44
