Запчасти Case IH WD1203 (12.02[1]) - DECK, RH (12) - MAIN FRAME

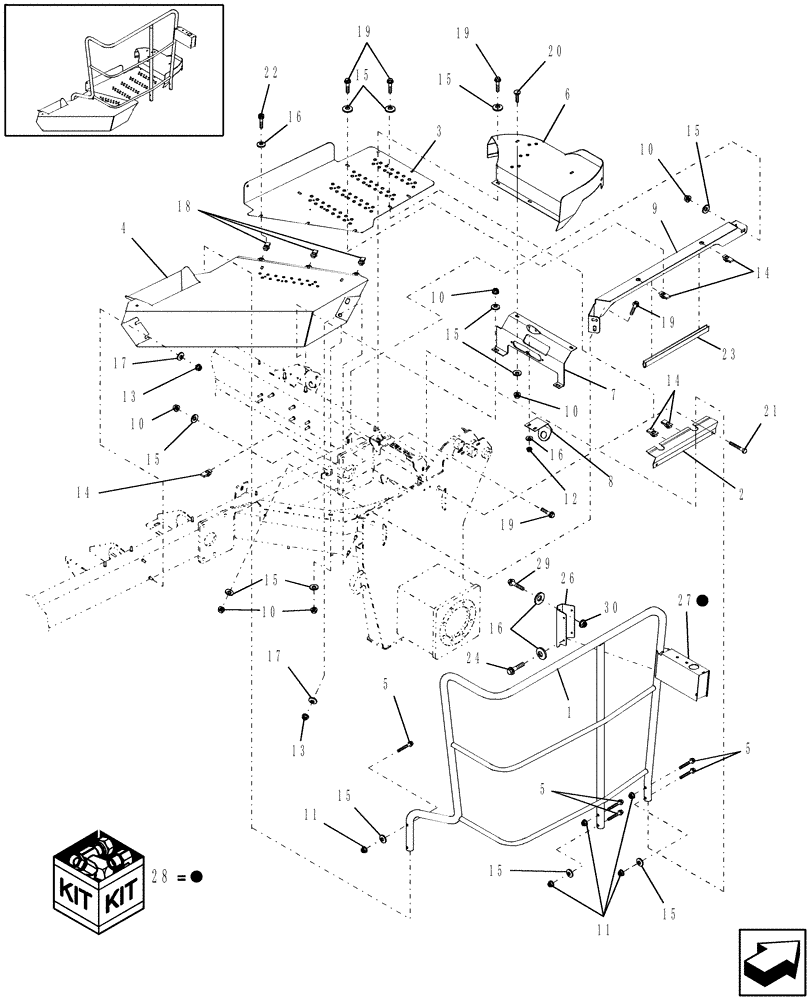

Схема запчастей Case IH WD1203 - (12.02[1]) - DECK, RH (12) - MAIN FRAME
16
9
3
30
5
15
2
13
10
15
15
19
13
29
10
15
19
15
24
4
5
20
11
12
26
1
17
5
28
11
23
22
6
21
14
18
14
7
8
17
15
14
16
10
27
10
19
19
15
10
16
15
15

Артикул

Название

Примечание

Количество

1

87040748

HANDRAIL

Right Hand

1шт.

2

87041532

SUPPORT

Right Hand

1шт.

3

87046377

COVER

1шт.

4

87046379

COVER

1шт.

5

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

6шт.

6

87022856

COVER

Right Hand

1шт.

7

87022874

SUPPORT ASSY.

1шт.

8

87031861

BRACKET

1шт.

9

87047441

SUPPORT

Right Hand

1шт.

10

425-286

FLANGE NUT,Flg, 3/8"-16, G5

12шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

6шт.

12

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

13

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

14

86539811

SPRING NUT

Speed, 3/8"-16

6шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

18

9626645

NUT

Speed, 5/16"-18

3шт.

19

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

10шт.

20

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

22

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

23

86516805

SOFT TRIM,31-3/4" L

31-3/4"; Cut To Fit (18" Required)

1шт.

24

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

25

145458

SERRATED NUT,5/16"-18 GR 5 ZND

5шт.

26

87369113

BRACKET

1шт.

27

NSS

NOT SOLD SEPARAT

Support, Lamp

1шт.

28

87362300

KIT

Includes: Ref. 40, Plus Retroreflective Tape 86547781, 86547782, & 86547783

1шт.

29

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

30

145458

SERRATED NUT,5/16"-18 GR 5 ZND

5шт.

Выбрано товаров: 30
