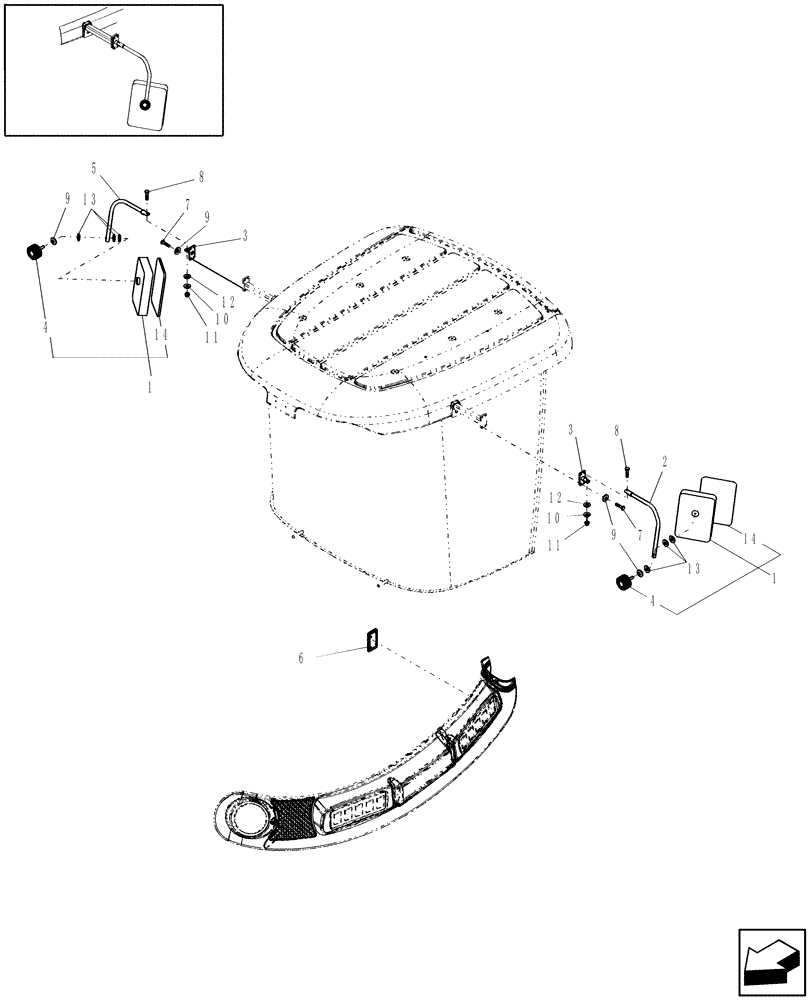

Запчасти Case IH WD1203 (10.29) - STANDARD MIRRORS (10) - CAB

1

82014587

REAR VIEW MIRROR

Includes: Ref. 4 & 14, BRITAX # 02*5481

2шт.

2

87020175

SUPPORT ASSY.

LH

1шт.

3

87020173

PLATE

2шт.

4

82016257

KNOB

2шт.

5

87024929

SUPPORT ASSY.

1шт.

6

86533310

PLUG

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

8

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

12

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

4шт.

13

412328

WASHER

Hardened, M8

6шт.

14

82015243

REPLACEMENT MIRROR

2шт.
