Запчасти Case IH WD1203 (10.24[1]) - CAB CONTROLS, FROM YCG667001 (10) - CAB

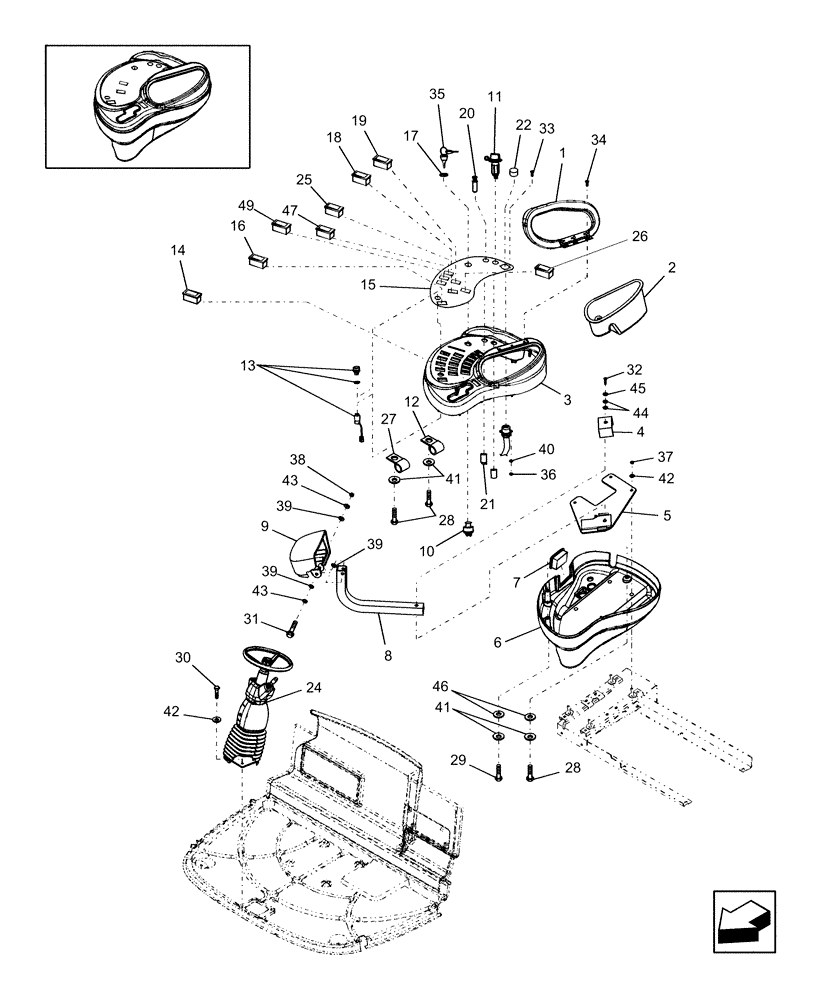

Схема запчастей Case IH WD1203 - (10.24[1]) - CAB CONTROLS, FROM YCG667001 (10) - CAB
41
45
29
7
30
6
42
21
8
43
41
47
16
15
42
11
25
13
44
36
2
49
1
39
10
38
46
33
17
27
40
18
34
22
28
9
35
39
31
26
43
3
4
14
20
5
32
39
19
37
28
24
12

Артикул

Название

Примечание

Количество

1

86995956

ARMREST

1шт.

2

86996699

BOX

1шт.

3

87051022

CONSOLE

Top

1шт.

4

87013015

BRACKET

1шт.

5

87013016

SUPPORT

1шт.

6

86621320

CONSOLE

Bottom

1шт.

7

9824826

ASH TRAY

1шт.

8

87026194

TUBE,313.60, 213.80 mm L

1шт.

9

87027222

DISPLAY MATERIAL

Includes: Housing, Alarm & Electronics Package

1шт.

87056575

HOUSING

1шт.

86507086

ALARM

Not Shown

1шт.

87033072

CONTROL MONITOR

Electronics Package, Not Shown

1шт.

10

86500903

IGNITION SWITCH

Includes: Ref. 35 & 45

1шт.

11

86626904

OUTLET

Power, Includes: Ref. 49 - 51

1шт.

12

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

13

82027013

SWITCH ASSY

On/Off, Header PTO

1шт.

14

87050749

SWITCH

Rocker, Park Brake

1шт.

15

87049444

DECAL

Std., RH Console

1шт.

84126277

DECAL

Deluxe Draper RH Console

1шт.

16

87023833

SWITCH

Header, Forward/Reverse

1шт.

17

86502200

NUT

1шт.

18

87023728

SWITCH

Rocker, High Range

1шт.

19

87023729

SWITCH

Rocker, Header Float

2шт.

20

86502099

CIGARETTE LIGHTER

Pop-Out

1шт.

21

86500340

CIGARETTE LIGHTER

Includes: Ref. 20

1шт.

22

84074633

COVER

1шт.

24

87530708

STEERING COLUMN

1шт.

25

87614936

EMBLEM CASE/IH

Used On Ref. 24

1шт.

26

87048685

SWITCH

Header Tilt

1шт.

27

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

28

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

29

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

30

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

31

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

32

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

33

86511816

SCREW,Pan, M3 x 0.5 x 16mm, Cl 4.8

4шт.

34

87977

SCREW,Slotted Truss Hd, #8 - 32 x 1/2"

3шт.

35

86502201

IGNITION KEY

Part of Ref. 10

1шт.

36

86508812

NUT,M3, Cl 8

4шт.

37

9706690

NUT,M8 x 1.25, Cl 8

8шт.

38

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

39

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

3шт.

40

86509827

LOCK WASHER,M3

4шт.

41

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

42

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

43

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

44

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

45

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

46

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

47

87023836

SWITCH

Rocker, Reel Speed

1шт.

48

87023837

SWITCH

Rocker, Belt Speed

1шт.

49

87023835

SWITCH

Reel Speed Mode

1шт.

50

283781A1

CAP,Polyester Elastomer

Not Illustrated

1шт.

51

87313181

SOCKET

Not Illustrated, Outlet Retainer

1шт.

52

436255A1

OUTLET

Not Illustrated, Power Outlet

1шт.

Выбрано товаров: 55
