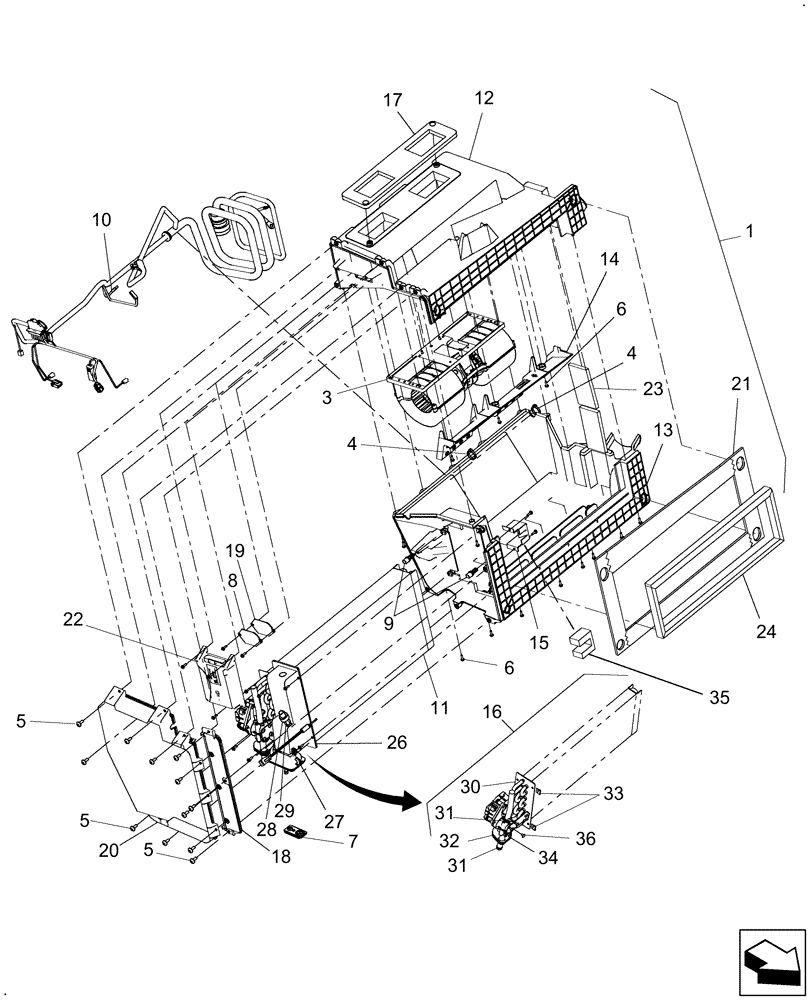

Запчасти Case IH WD1203 (10.19[2]) - AIR CONDITIONER/HEATER, P.I.N. Y8G661200 & AFTER (10) - CAB

1

87398804

AIR CONDITIONER

ATC

1шт.

1

87398805

AIR CONDITIONER

MANUAL

1шт.

3

87754246

ELECTRIC BLOWER

1шт.

4

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP

2шт.

5

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

12шт.

6

87495849

SCREW,Hex Washer, 14mm

32шт.

ATC Only

1шт.

6

87495849

SCREW,Hex Washer, 14mm

29шт.

Manual Only

1шт.

7

87495851

SPRING NUT,K50, Plastic

4шт.

8

87754244

COVER

Includes: Ref. 19

1шт.

9

87454442

SENSOR

Thermister, Cab Air Return

2шт.

ATC Only

1шт.

9

87754248

PLUG

2шт.

Manual Only

1шт.

10

87754254

WIRE HARNESS

ATC

1шт.

10

87754255

WIRE HARNESS

Manual

1шт.

11

87754243

EVAPORATOR

For Component Breakdown, See Fig. 10.19 (3)

1шт.

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

Not Illustrated

1шт.

12

87653379

HOUSING

Top

1шт.

13

87653381

HOUSING

Bottom

1шт.

14

87655340

BAFFLE

1шт.

15

NSS

NOT SOLD SEPARAT

Cover

1шт.

16

0C

ORDER COMPONENTS

Heater Coil

1шт.

84144186

1шт.

17

87754233

GASKET

1шт.

18

87656838

COVER

Front

1шт.

19

87754234

GASKET

1шт.

20

87655335

COVER

Rear

1шт.

21

87754236

GASKET

1шт.

22

84143879

MODULE

ATC Control

1шт.

84268957R

REMAN ELECT CONTROL

WD1903 , WD1203 , WD2303 (9/07 - ) Reman For New P/N 84143879

1шт.

84268957C

CORE-ELECTRONIC CONT

Return Number

1шт.

23

87754237

GASKET

2шт.

24

84143878

FOAM INSULATION

1шт.

26

87754232

GASKET

1шт.

27

87754230

BOOT

TXV

1шт.

28

87323829

SWITCH, A/C LOW PRES

1шт.

29

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

Bracket, Venturi

1шт.

30

87754225

HEATER COIL

1шт.

31

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

32

87754231

GROMMET

Tube

1шт.

33

87495850

SPRING NUT,J, #10

2шт.

34

87754256

HEATER VALVE

1шт.

35

84158122

INSULATOR

1шт.

36

87355939

SCREW,#8 - 16 x 0.28"

10шт.
