Запчасти Case IH WD1203 (10.11) - SEAT, SUSPENSION (10) - CAB

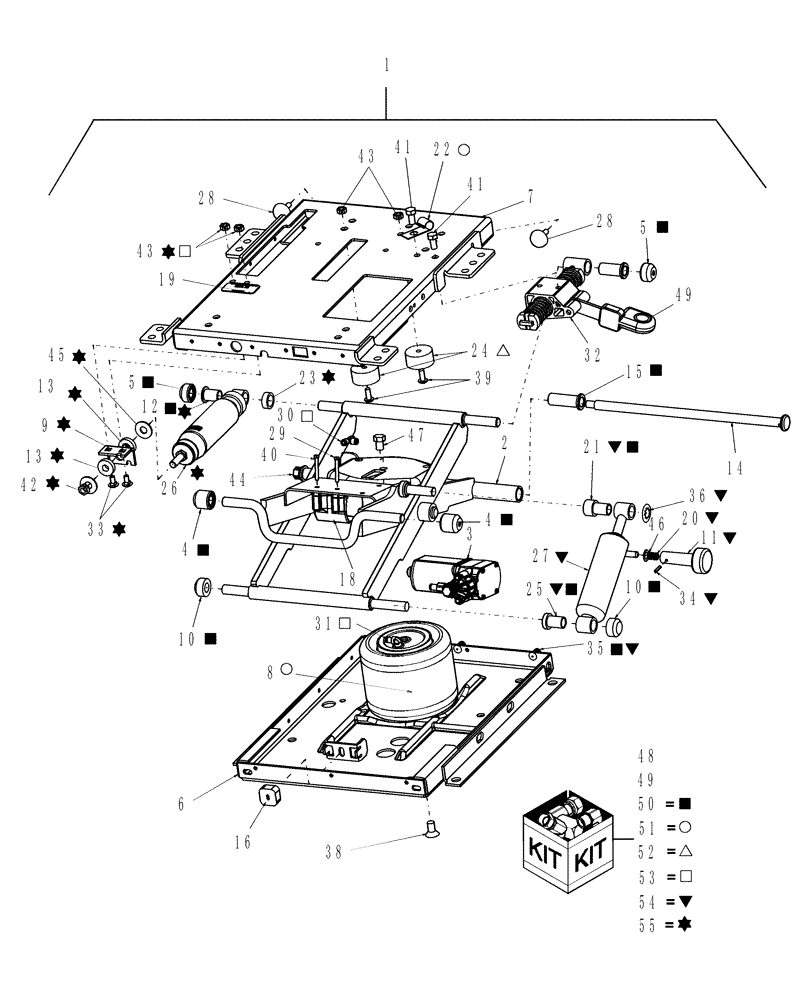

Схема запчастей Case IH WD1203 - (10.11) - SEAT, SUSPENSION (10) - CAB
8
26
33
42
21
41
35
47
43
25
50
36
13
22
16
32
53
5
28
12
28
44
49
52
20
23
7
24
39
29
3
15
48
4
11
14
54
18
6
40
2
30
51
13
55
1
43
38
49
10
46
10
19
27
31
45
5
9
34
4
41

Артикул

Название

Примечание

Количество

1

87390388

KIT

Suspension; Includes: Ref.s 2 Thru 55

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension Arm

1шт.

3

87608071

AIR COMPRESSOR KIT

Includes: Tubing, Fitting & Hardware

1шт.

4

NSS

NOT SOLD SEPARAT

Roller, Wide

2шт.

5

NSS

NOT SOLD SEPARAT

Roller, Narrow

2шт.

6

NSS

NOT SOLD SEPARAT

Weldment, Housing, Lower

1шт.

7

NSS

NOT SOLD SEPARAT

Weldment, Housing, Upper

1шт.

8

NSS

NOT SOLD SEPARAT

Spring, Air

1шт.

9

NSS

NOT SOLD SEPARAT

Angle, Shock Mounting

1шт.

10

NSS

NOT SOLD SEPARAT

Roller

2шт.

11

87347974

SERVICE KIT

Knob, Seat

1шт.

12

NSS

NOT SOLD SEPARAT

Bushing, Shock, Isolator

1шт.

13

NSS

NOT SOLD SEPARAT

Bushing

2шт.

14

143786A1

SHAFT,308.9mm L

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Bearing

2шт.

16

276467

BUMPER

1шт.

17

87390389

WIRE HARNESS

Harness, Wire

1шт.

18

NSS

NOT SOLD SEPARAT

Mount, Compressor

1шт.

19

NS

NOT SERVICED

Plate, Serial Number

1шт.

20

NSS

NOT SOLD SEPARAT

Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing, Sleeve

1шт.

22

NSS

NOT SOLD SEPARAT

Clip, "J"

1шт.

23

NSS

NOT SOLD SEPARAT

Spacer, Fore-Aft

1шт.

24

NSS

NOT SOLD SEPARAT

Bumper

2шт.

25

NSS

NOT SOLD SEPARAT

Bearing

1шт.

26

NSS

NOT SOLD SEPARAT

Shock

1шт.

27

NSS

NOT SOLD SEPARAT

Shock

1шт.

28

NSS

NOT SOLD SEPARAT

Bumper

2шт.

29

NSS

NOT SOLD SEPARAT

Tie, Cable

3шт.

30

NSS

NOT SOLD SEPARAT

Fitting, Tee, M4

1шт.

31

NSS

NOT SOLD SEPARAT

Elbow, 90°, 1/8" NPT Male x 5/32 OD

1шт.

32

1990645C1

LATCH

1шт.

33

NSS

NOT SOLD SEPARAT

Bolt, Carriage, 1/4"-20 UNC-2A

2шт.

34

NSS

NOT SOLD SEPARAT

Pin, Roll, 1/8" x 5/8"

1шт.

35

NSS

NOT SOLD SEPARAT

Clip, Christmas Tree

3шт.

36

NSS

NOT SOLD SEPARAT

Retainer, Internal Tooth, 1/2"

1шт.

37

NSS

NOT SOLD SEPARAT

Tubing

1шт.

Not Shown

1шт.

38

NSS

NOT SOLD SEPARAT

Screw, Flat Hd Machine, 3/8"-16 UNC-2A

1шт.

39

NSS

NOT SOLD SEPARAT

Screw, Rnd Hd Machine, 1/4"-20 UNC, 5/8" Lg.

2шт.

40

NSS

NOT SOLD SEPARAT

Bolt, #8 x 1.25, Type AB Slotted HH Flg

2шт.

41

NSS

NOT SOLD SEPARAT

Bolt, 5/16"-14x.63 Thd Frming Blunt Pt Hex Wshr Hd

2шт.

42

NSS

NOT SOLD SEPARAT

Nut, Centerlock, 5/16"-24 UNC

1шт.

43

NSS

NOT SOLD SEPARAT

Nut, Centerlock, 1/4"-20 UNC

4шт.

44

NSS

NOT SOLD SEPARAT

Nut, Centerlock, 3/8"-16 UNC

1шт.

45

NSS

NOT SOLD SEPARAT

Washer, .406" ID x 1" OD x .06" Thk

2шт.

46

NSS

NOT SOLD SEPARAT

Washer, .386" ID x .625" OD x .03" Thk

1шт.

47

NSS

NOT SOLD SEPARAT

Bolt, HH, 3/8"-16x1/2"

1шт.

48

87347962

SERVICE KIT

Boot, Seat

1шт.

Not Shown

1шт.

49

87352581

SERVICE KIT

Seat Isolator Knob

1шт.

50

87347967

BEARING ASSY

Bearing, Seat

1шт.

51

197793A1

SPRING

Air

1шт.

52

180593A1

KIT

Bumper

1шт.

53

87352578

SERVICE KIT

Seat Airline

1шт.

54

87352579

SERVICE KIT

Seat Shock Absorber

1шт.

55

87352580

SERVICE KIT

Seat Shock Absorber, Fore/Aft

1шт.

Выбрано товаров: 57
