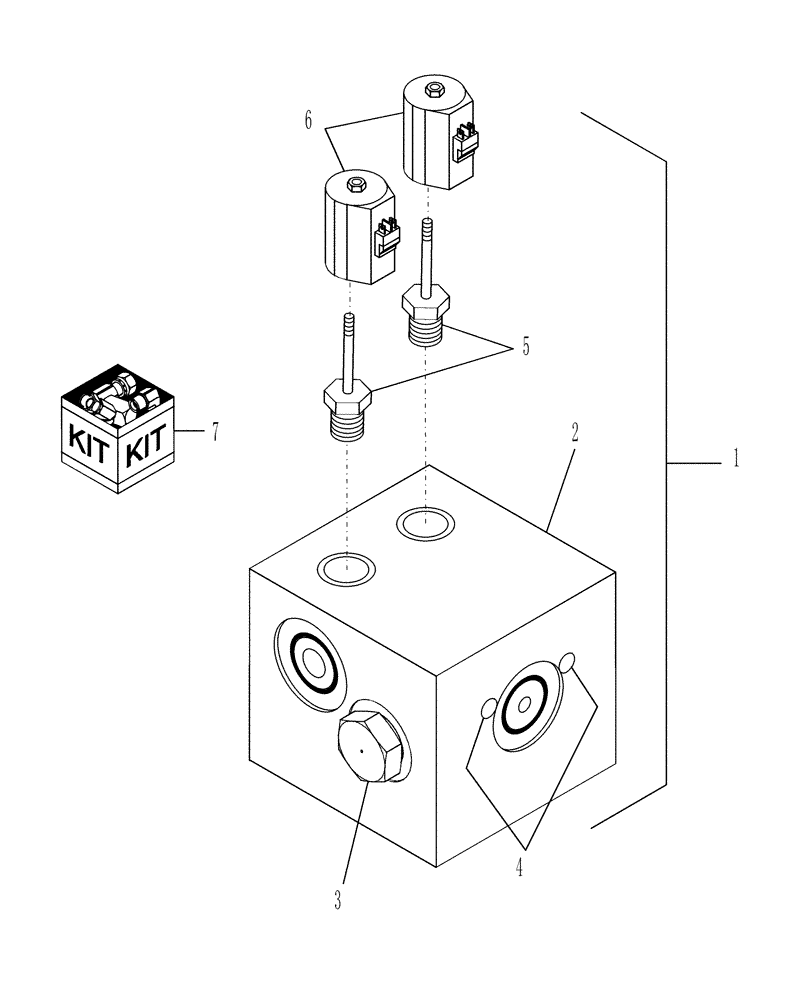

Запчасти Case IH WD1203 (09.10) - FLOW DIVIDER VALVE, DRAPER OPTION (09) - HEADER LIFT LINKAGE

1

87398498

HYDRAULIC VALVE

Valve, Flow Divider; Includes: Ref.s 2 Thru 6, As Indicated

1шт.

WD1903 & WD2303

1шт.

1

87545543

FLOW DIVIDER

Valve, Flow Divider; Includes: Ref.s 2 Thru 6, As Indicated

1шт.

WD1203

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold

1шт.

3

87546650

FLOW DIVIDER

Valve

1шт.

WD1903 & WD2303

1шт.

3

87546649

FLOW DIVIDER

Valve

1шт.

WD1203

1шт.

4

NSS

NOT SOLD SEPARAT

Plug

2шт.

5

87740293

SOLENOID VALVE

CartridgeSee Also: Ref. 7

2шт.

6

87352777

SOLENOID

Coil

2шт.

7

86978349

SEAL KIT

Services Ref. 5

1шт.
