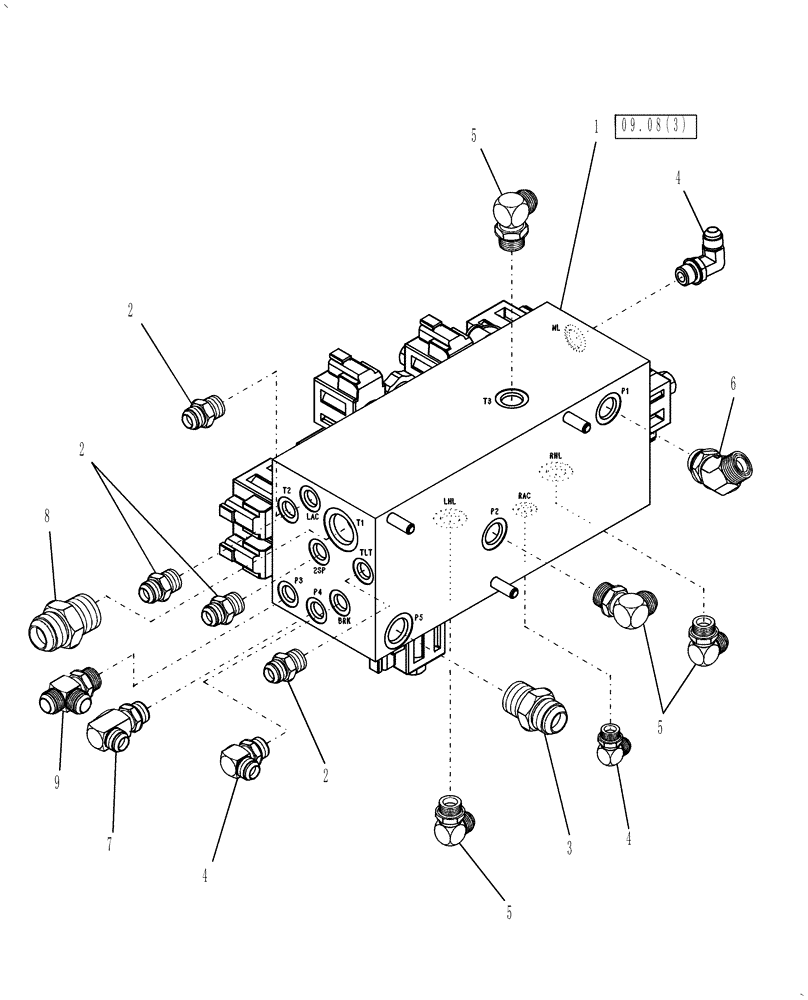

Запчасти Case IH WD1203 (09.09[2.1]) - MANIFOLD, INDEPENDENT, CONNECTORS - DRAPER OPTION, FROM YCG667001 (09) - HEADER LIFT LINKAGE

1

87703825

VALVE

, Serial Range: Y8G661201-YDG670315

1шт.

1

47913935

PLATE

Used With Valve 47773033 and 47773034

1шт.

87703825R

REMAN-HYD VALVE

WD1203 FROM YCG667001 (9/07-)

1шт.

87703825C

CORE-VALVE HYD

Return Number

1шт.

47773034R

REMAN-HYD VALVE

Reman Valve

1шт.

47773034C

CORE-VALVE HYD

Return Number

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

4шт.

3

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

6

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

7

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

76349

PLUG,9/16" - 18 ORB

1шт.

11

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.
