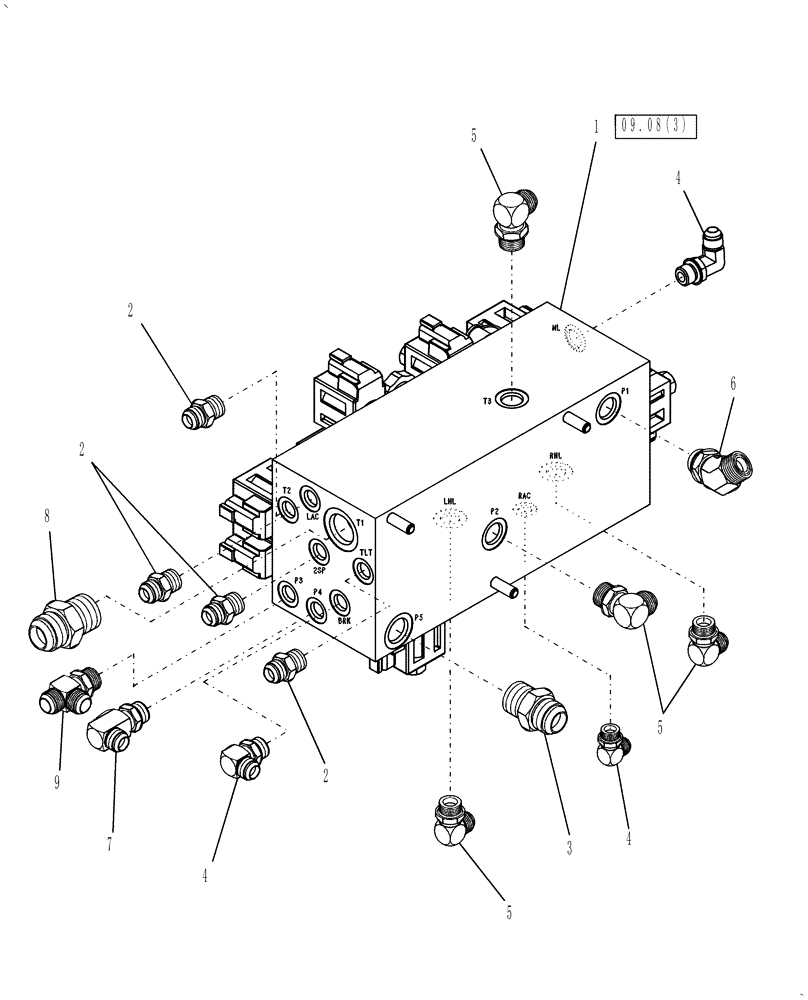

Запчасти Case IH WD1203 (09.08[2]) - MANIFOLD, INDEPENDENT, CONNECTORS - DRAPER OPTION (09) - HEADER LIFT LINKAGE

1

87548448

CONTROL VALVE

Independent

1шт.

P.I.N. Y8G661200 & Prior

1шт.

1

87703825

VALVE

CONTROL Independent, Serial Range: Y8G661201-YDG670315

1шт.

P.I.N. Y8G661201 & After

1шт.

1

47913935

PLATE

Used With Valve 47773033 and 47773034

1шт.

87703825R

REMAN-HYD VALVE

WD2303, WD1903 both (9/07-)

1шт.

87703825C

CORE-VALVE HYD

Return Number

1шт.

47773034R

REMAN-HYD VALVE

Reman Independent Independent Valve

1шт.

47773034C

CORE-VALVE HYD

Return Number

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

4шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

3

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: O-Ring

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

6

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Includes: O-Ring

1шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

86513067

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, Pipe

Includes: O-Ring

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Includes: O-Ring

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
