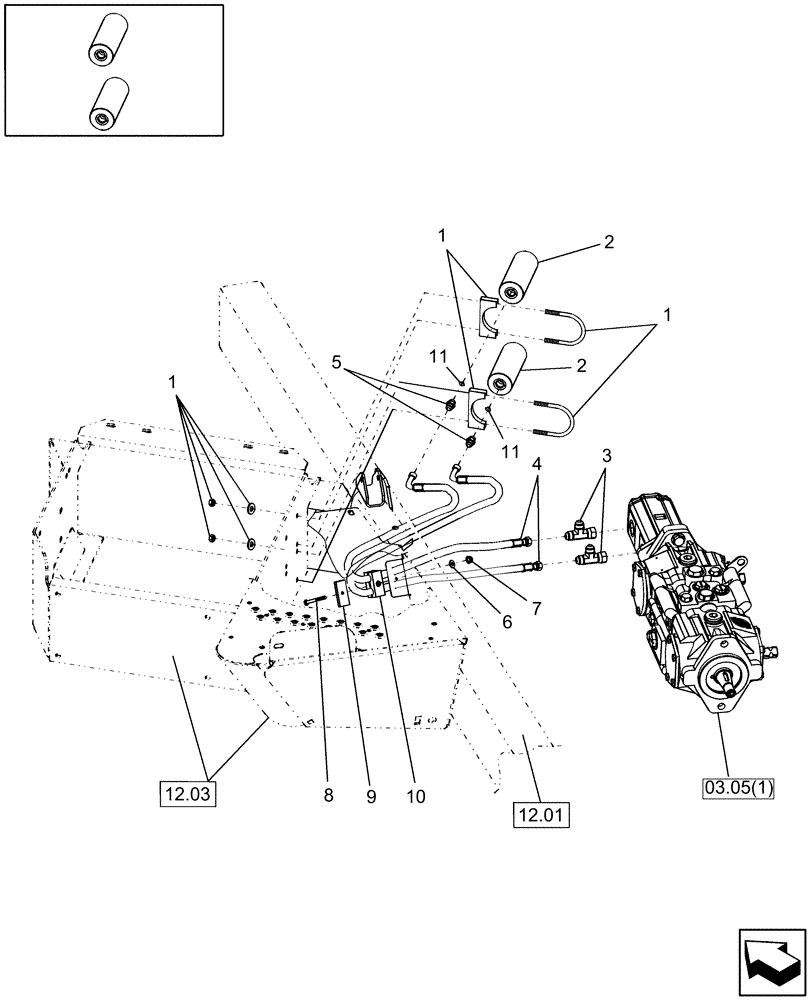

Запчасти Case IH WD1203 (09.06[1]) - ACCUMULATOR, SURGE DAMPENING (09) - HEADER LIFT LINKAGE

1

129172

CLAMP

4шт.

2

87383612

ACCUMULATOR

P.I.N. Y8G661200 & Prior

2шт.

3

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

4

87519225

HOSE ASSY.

7/8" OD x 1/2" ID x 32" Long

2шт.

5

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

6

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

9

790242

COVER

1шт.

10

86563609

CLAMP

1шт.

11

87583345

ORIFICE

Plate

2шт.
