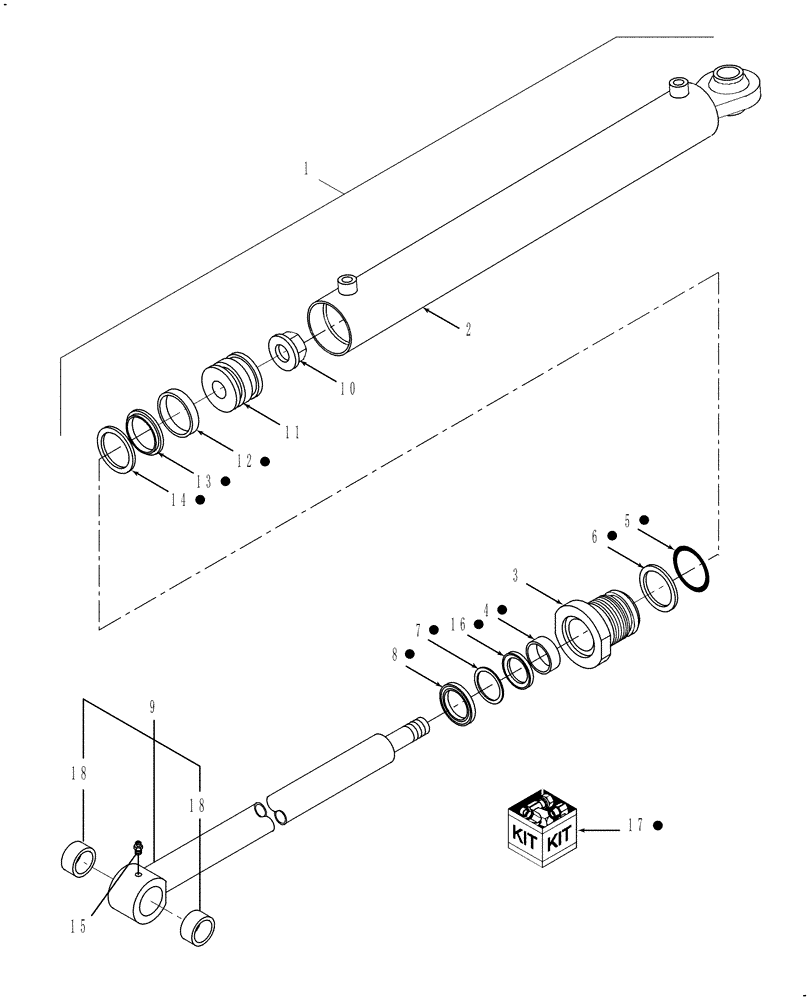

Запчасти Case IH WD1203 (09.02[3]) - HYDRAULIC CYLINDER, HEADER LIFT, 2.75 X 10.50 (09) - HEADER LIFT LINKAGE

1

84377916

HYDRAULIC CYLINDER,Double Acting, 31.6mm Rod, 266.7mm Stroke

Header Lift, 2.75" x 10.5"

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel, 2-3/4" ID

1шт.

3

84389828

GLAND

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

87696912

WASHER

1шт.

7

87042812

BACK-UP RING

1шт.

8

87042811

WIPER

Rod, Self-Cleaning

1шт.

9

84389784

ROD

Eye On The End Of Rod has 3.25" OD

1шт.

10

84389824

LOCK NUT

1"-14 UNC GR.C

1шт.

11

84389822

PISTON

1шт.

12

87696913

RING

1шт.

13

87696911

RING

1шт.

14

87696910

RING

1шт.

15

87414

LUBE NIPPLE,1/4" - 28

1шт.

16

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

O-Ring

1шт.

17

87543621

SEAL KIT

1шт.

18

84389821

BUSHING

Rod

2шт.
