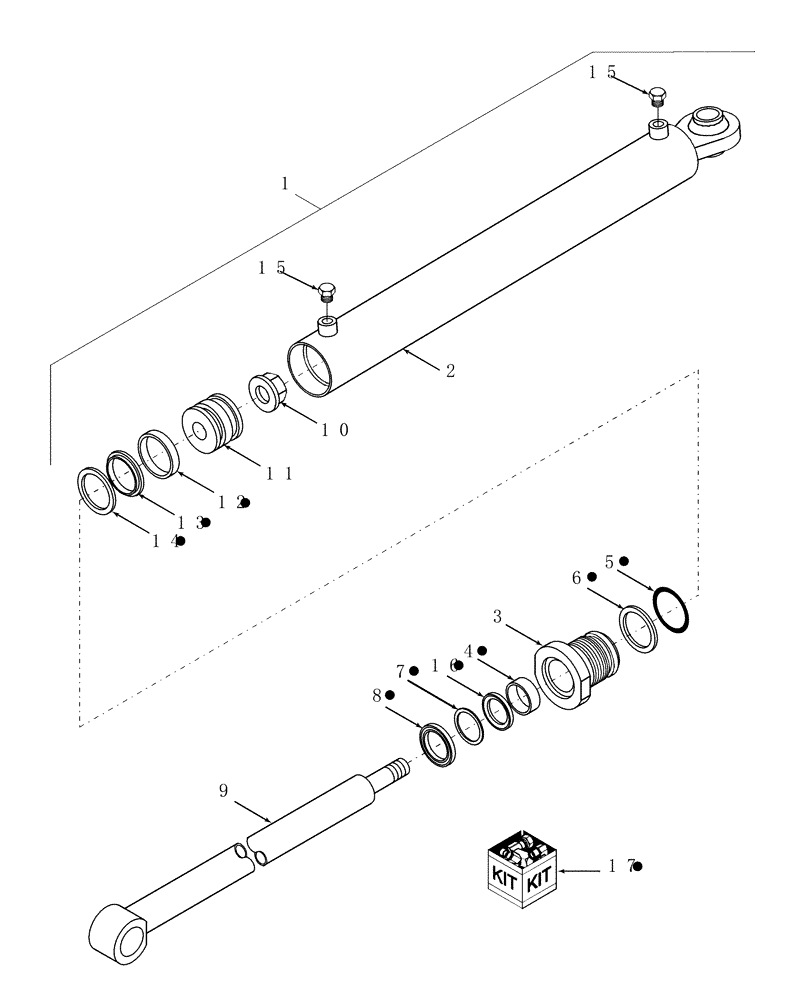

Запчасти Case IH WD1203 (09.02[2]) - HYDRAULIC CYLINDER, HEADER LIFT, 2.75 X 10.50 (09) - HEADER LIFT LINKAGE

1

87547927

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 266.7mm Stroke

Header Lift, Draper Option, 2.75" x 10.50"

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel, 2-3/4" ID

1шт.

3

87543619

HEAD

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

87696912

WASHER

Washer, Backup

1шт.

7

87042812

BACK-UP RING

1шт.

8

87042811

WIPER

1шт.

9

87547918

PISTON ROD/GLAND

Rod

1шт.

9

87033966

BUSHING

Rod

2шт.

10

86027295

LOCK NUT

1"-14 UNC GR.C

1шт.

11

87543620

PISTON

1шт.

12

87696913

RING

1шт.

13

87696911

RING

1шт.

14

87696910

RING

1шт.

15

214389

PLUG,3/4" - 16 ORB

2шт.

16

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

O-Ring

1шт.

17

87543621

SEAL KIT

1шт.
