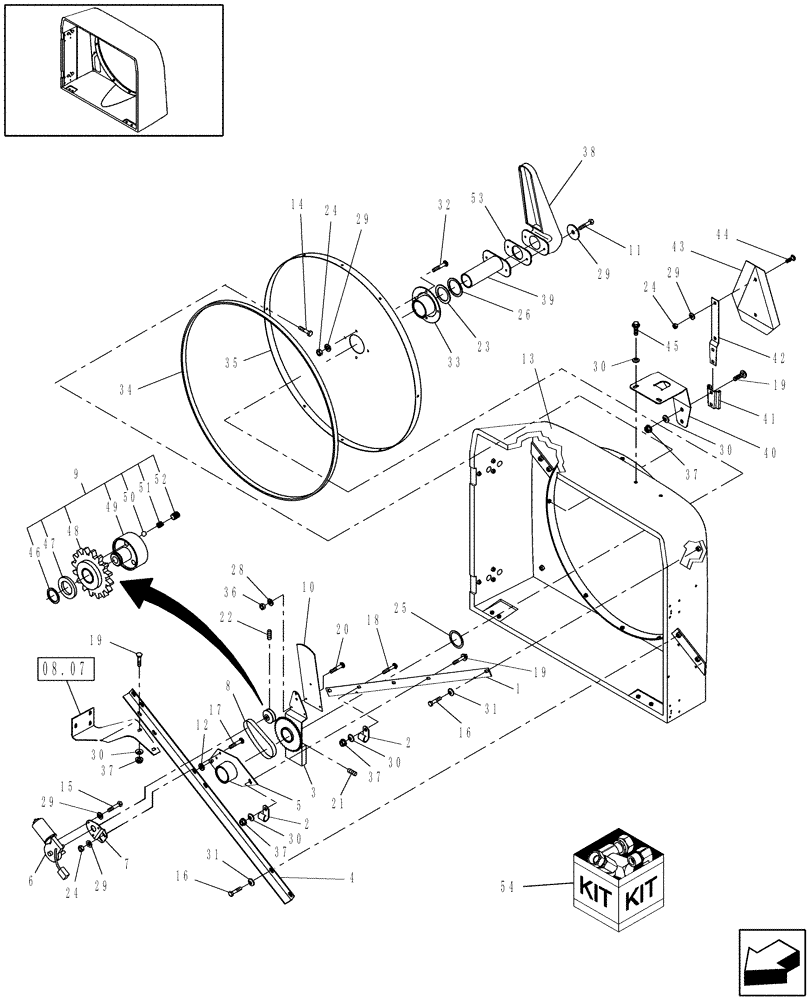

Запчасти Case IH WD1203 (08.06) - ROTARY SCREEN, 4-CYL (08) - SHEET METAL

1

87020920

ANGLE

1шт.

P.I.N. Y9G661881 & Prior

1шт.

1

87485675

ANGLE

1шт.

P.I.N. Y9G661882 & After

1шт.

2

134579

WIRE CLAMP,J

3шт.

3

87550905

BLOCK

Hub, 40T

1шт.

P.I.N. Y9G661881 & Prior

1шт.

3

87486023

DEFLECTOR

Hub, 40T

1шт.

P.I.N. Y9G661882 & After

1шт.

4

87020919

ANGLE

1шт.

P.I.N. Y9G661881 & Prior

1шт.

4

87485674

ANGLE

1шт.

P.I.N. Y9G661882 & After

1шт.

5

86506283

ENGINE MOUNT

Includes Bushing 86526513, Not Illustrated

1шт.

P.I.N. Y9G661881 & Prior

1шт.

5

87485682

ENGINE MOUNT

Includes Bushing 86526513, Not Illustrated

1шт.

P.I.N. Y9G661882 & After

1шт.

6

87541053

WIPER MOTOR

Rotary Screen Motor

1шт.

TY09 & Prior

1шт.

6

87488680

ELECTRIC MOTOR

Rotary Screen

1шт.

87488680R

REMAN-ELECTRIC MOTOR

Reman motor Rotary Screen, Shaft OD 12mm

1шт.

87488680C

CORE-ELECTRIC MOTOR

Return Number

1шт.

P.I.N. Y9G662399 & After

1шт.

Component of Rotary Screen Motor kit, 84209230

1шт.

6a

84210503

SPADE TERMINAL,Male, 0.20 - 0.8 mm2

Not Illustrated

2шт.

Component of Rotary Screen Motor kit, 84209230

1шт.

7

86583849

PLATE

1шт.

TY2009 & Prior

1шт.

7

84143360

MOUNT

1шт.

P.I.N. Y9G662399 & After

1шт.

Component of Rotary Screen Motor kit, 84209230

1шт.

8

86976085

CHAIN

1шт.

9

0C

ORDER COMPONENTS

Sprocket

1шт.

TY09 & Prior

1шт.

10

84568373

PLATE

1шт.

11

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

495-21038

WASHER,5/16"

1шт.

13

87541347

HOUSING

Fan

1шт.

14

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

16

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

17

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

19

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

7шт.

20

84821

SCREW,Truss HD, #10 - 24 x 1/2"

3шт.

21

80434

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

1шт.

22

86512757

SET SCREW,Hex Skt, 1/4" - 20 x 3/4"

1шт.

TY09 & Prior

1шт.

22

NSS

NOT SOLD SEPARAT

Set Screw

1шт.

TY10 & After (Expected Implementation August 2009)

1шт.

23

86564668

SEAL

1шт.

24

425-104

NUT,1/4"-20, Cl 5

3шт.

25

122257

WASHER,61.9mm ID x 77.79mm OD x 1.2mm Thk

3шт.

P.I.N. Y9G661881 & Prior

1шт.

25

87057652

WASHER,61.9mm ID x 77.79mm OD x 1.22mm Thk

3шт.

P.I.N. Y9G661882 & After

1шт.

26

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

P.I.N. Y9G661881 & Prior

1шт.

26

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

P.I.N. Y9G661882 & After

1шт.

27

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

28

492-11010

LOCK WASHER,#10

3шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

32

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

4шт.

33

86506095

HUB

1шт.

34

689142

SEALING STRIP

1/4"-20 x 3/4" x 80" Long

1шт.

35

86506098

SCREEN

1шт.

36

225-14110

NUT,#10-24

3шт.

37

425-285

FLANGE NUT,Flg, 5/16"-18, G5

9шт.

38

87608183

ARM

1шт.

39

86638972

TUBE,163 mm L

1шт.

40

87032788

BRACKET

1шт.

41

847590

BRACKET

1шт.

42

195035

SUPPORT

1шт.

43

86547710

EMBLEM

KIT SMV

1шт.

44

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

RH

2шт.

45

280146

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

3шт.

46

103-1475

SNAP RING,#75, Ext

1шт.

TY09 & Prior

1шт.

47

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

TY09 & Prior

1шт.

48

86564592

SPROCKET

1шт.

TY09 & Prior

1шт.

48

87497774

SPROCKET

16 Teeth, Includes M4 x 0.70 x16 Setscrew, nss

1шт.

P.I.N. Y9G662399 & After

1шт.

Component of Rotary Screen Motor kit, 84209230

1шт.

49

87396514

HUB

Services 87541053 Motor

1шт.

TY09 & Prior

1шт.

50

86628554

BALL,6.53mm OD, Gr 25

3шт.

TY09 & Prior

1шт.

51

86628555

SPRING

3шт.

TY09 & Prior

1шт.

52

80434

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

3шт.

53

87661445

PLATE

1шт.

54

84209230

KIT

Rotary Screen Motor, Includes Ref 6, 6a, 7, & 48

1шт.
