(08-076) - HYDRAULIC ACTUATOR AND MOUNTING ASSEMBLY

Запчасти Case IH 8880HP (08-076) - HYDRAULIC ACTUATOR AND MOUNTING ASSEMBLY (35) - HYDRAULIC SYSTEMS

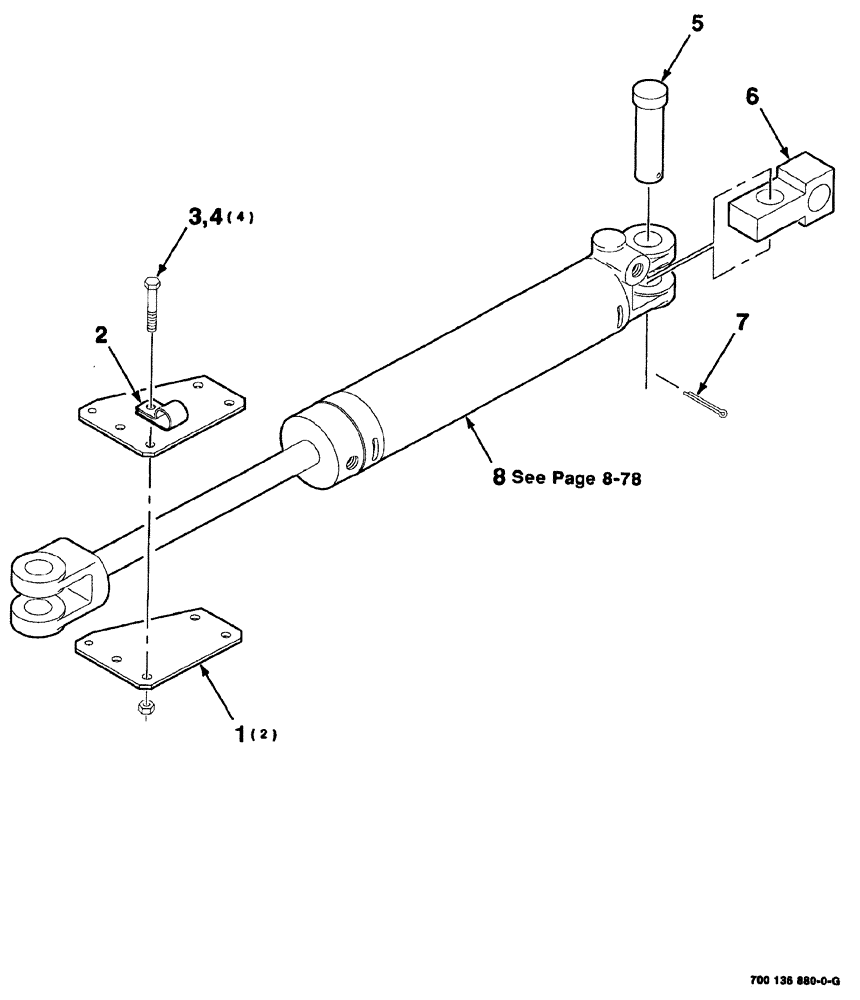

Схема запчастей Case IH 8880HP - (08-076) - HYDRAULIC ACTUATOR AND MOUNTING ASSEMBLY (35) - HYDRAULIC SYSTEMS
8
7
3
4
1
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700130072

PLATE

stop

2шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line

1шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18, HFTLN, GR/G

4шт.

5

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1 x 3-1/2

1шт.

6

700117977

MOUNTING PARTS

1шт.

7

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

8

700728106

CYLINDER ASSY.,Double Acting, 28.58mm Rod, 203.2mm Stroke

hydraulic

1шт.
