Запчасти Case IH 8880HP (08-074) - HYDRAULIC HEADER ANGLE TILT ASSEMBLY (35) - HYDRAULIC SYSTEMS

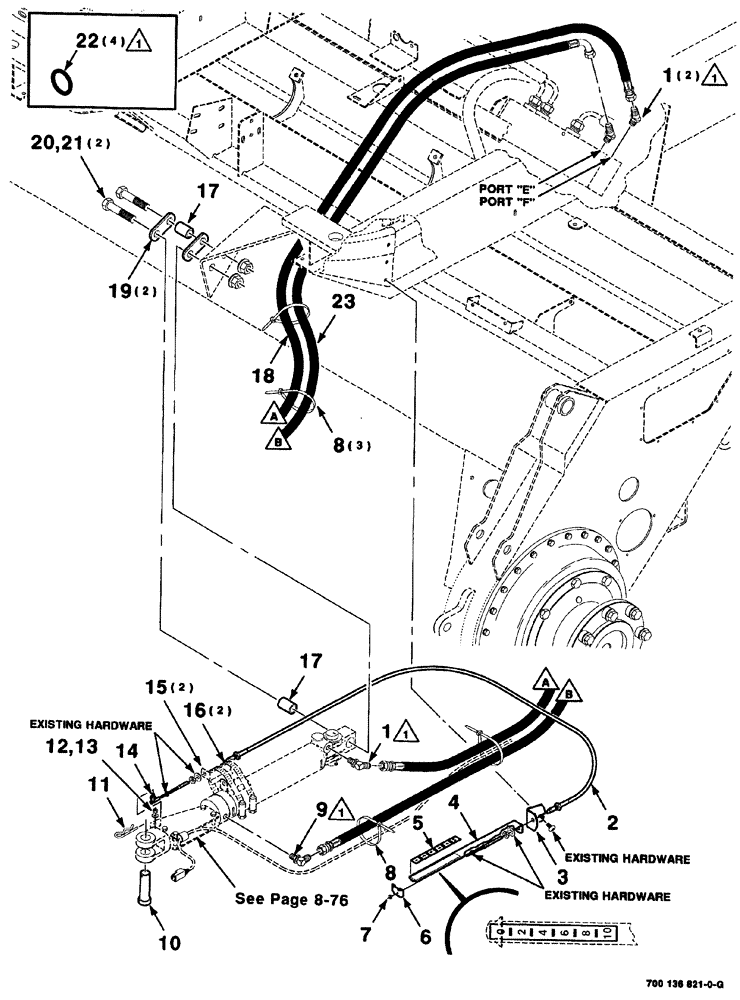

Схема запчастей Case IH 8880HP - (08-074) - HYDRAULIC HEADER ANGLE TILT ASSEMBLY (35) - HYDRAULIC SYSTEMS
11
16
15
12
17
23
8
19
20
10
18
2
1
17
9
14
1
7
3
21
4
5
8
6
22
13

Артикул

Название

Примечание

Количество

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Fig. 22)

3шт.

2

700713391

CABLE

1шт.

3

700134149

ANGLE

mounting

1шт.

4

700136918

ANGLE

indicator (Includes decal)

1шт.

5

700713390

DECAL

indicator

1шт.

6

700134343

INDICATOR

1шт.

7

225-14210

NUT,#10-32

1шт.

8

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE nylon

4шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Fig. 22)

1шт.

10

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1 x 3-1/2

1шт.

11

062455

PIN, SPLIT (COTTER)

PIN, COTTER wire hair, .178

1шт.

12

425-114

NUT,1/4"-28, G5

1шт.

13

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

1шт.

14

A76747

BALL JOINT,#10 -32 x 7/8" L

ASSEMBLY, ball

1шт.

15

700114935

BRACKET

cable

2шт.

16

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

17

700114925

BUSHING

BUSHING

2шт.

18

700709957

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm, TYPE 100R1

1шт.

19

700117954

STRAP

2шт.

20

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

2шт.

21

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

2шт.

22

738468

O-RING

4шт.

23

700707385

HOSE

hydraulic

1шт.

Выбрано товаров: 23
