Запчасти Case IH 8880HP (08-072) - HYDRAULIC SHUT OFF VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

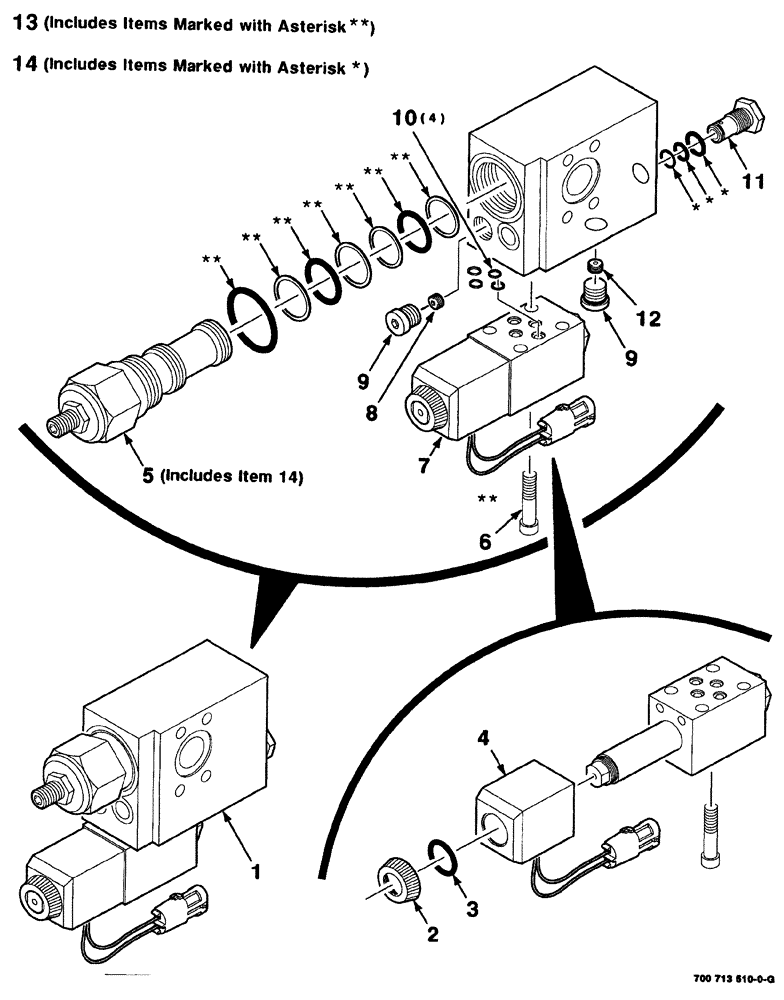

Схема запчастей Case IH 8880HP - (08-072) - HYDRAULIC SHUT OFF VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS
9
3
4
13
10
11
9
12
8
14
6
7
5
1
2

Артикул

Название

Примечание

Количество

1

700713510

SHUT-OFF VALVE

ASSEMBLY, complete

1шт.

2

700718869

NUT

plastic

1шт.

3

700718870

O-RING

1шт.

4

700715392

SOLENOID

1шт.

5

700715812

VALVE

PRESSURE SENSING ASSEMBLY

1шт.

6

700714189

KIT

bolt (Includes 4)

1шт.

7

700713512

SOLENOID

valve

1шт.

8

700714186

PLUG

orifice (.030)

1шт.

9

700712831

PLUG

#6 SAE

2шт.

10

700714309

O-RING

4шт.

11

700713514

VALVE

check

1шт.

12

700706609

ORIFICE

(.040)

1шт.

13

700714185

KIT

seal and o-ring repair, Includes items in art marked with double asterisk

1шт.

14

149942C1

SEAL KIT

seal and o-ring repair, Includes items in art marked with asterisk

1шт.

Выбрано товаров: 14
