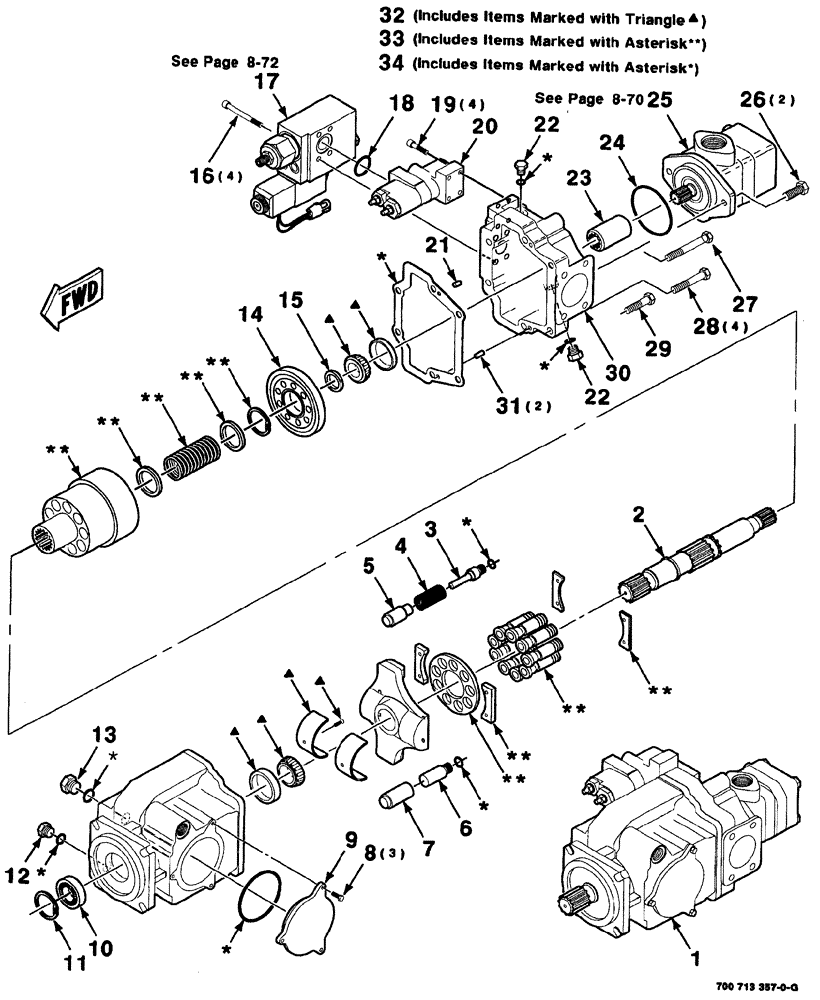

Запчасти Case IH 8880HP (08-068) - HYDRAULIC PUMP ASSEMBLY (HEADER DRIVE) (35) - HYDRAULIC SYSTEMS

1

700713357

PUMP

HYDRAULIC ASSEMBLY, complete (includes Figs. 8-68 thru 8-72)

1шт.

2

700716775

SHAFT

1шт.

3

700713492

ROD

bias

1шт.

4

700713494

SPRING

1шт.

5

700713493

PISTON

bias

1шт.

6

700713490

ROD

control

1шт.

7

700713491

PISTON

control

1шт.

8

700714183

BOLT

M6 x 1.00 x 16, C, grade 8.8

3шт.

9

700713501

COVER

1шт.

10

700713502

SEAL

shaft

1шт.

11

700713505

RING

retaining

1шт.

12

700713460

PLUG

o-ring

1шт.

13

700713498

PLUG

1шт.

14

700713497

PLATE

valve

1шт.

15

700713485

KIT

spacer, shaft

1шт.

16

700714181

BOLT

3/8-16 x 3-1/4, HSHCS, special

4шт.

17

700713510

SHUT-OFF VALVE

ASSEMBLY, shut off

1шт.

18

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

19

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

20

700715164

CONTROL

S/A

1шт.

21

700713481

PIN

1шт.

22

700713476

PLUG

2шт.

23

700713499

COUPLING

1шт.

24

700713515

O-RING

O

1шт.

25

700713507

PUMP

ASSEMBLY

1шт.

26

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

27

700714180

BOLT

M12 x 1.75 x 90, C, grade 10.9

1шт.

28

700714182

BOLT

M12 x 1.75 x 50, C, grade 10.9

4шт.

29

700714187

BOLT

M12 x 1.75 x 70, C, grade 10.9

1шт.

30

700713483

BLOCK

valve

1шт.

31

700713482

PIN

2шт.

32

700713486

BEARING ASSY

KIT, Includes items in art marked with triangle

1шт.

33

700713488

KIT

rotating group, Includes items in art marked with double asterisk

1шт.

34

700713489

SEAL KIT

seal, Includes items in art marked with asterisk

1шт.
