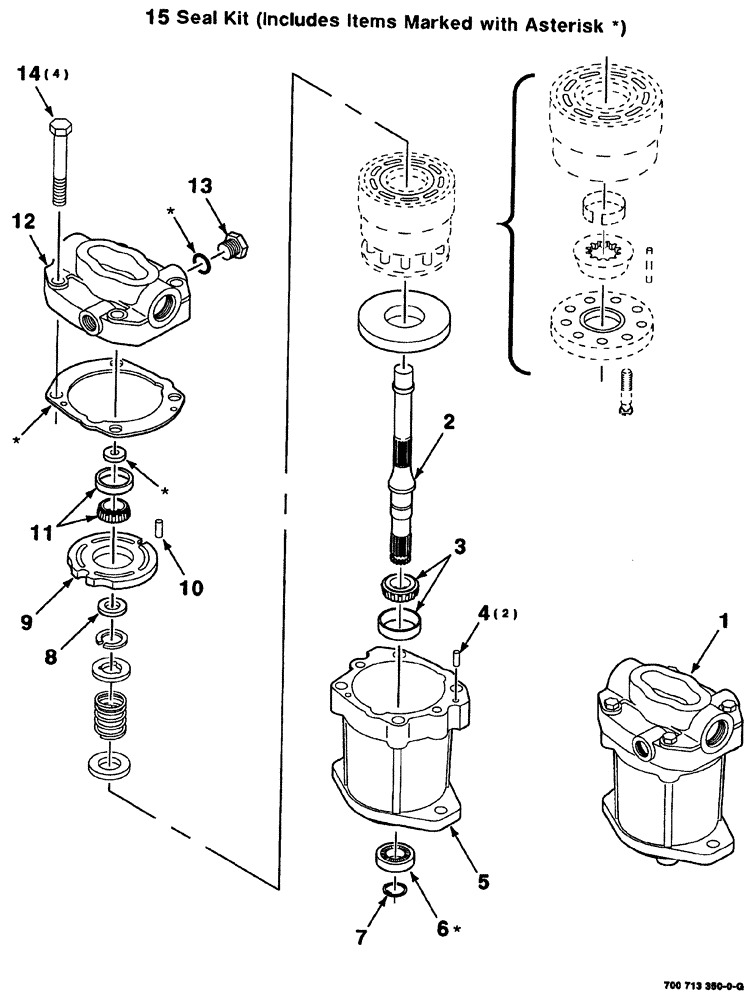

Запчасти Case IH 8880HP (08-062) - HYDRAULIC MOTOR ASSEMBLY (HEADER DRIVE) (35) - HYDRAULIC SYSTEMS

1

700713350

MOTOR

HYDRAULIC ASSEMBLY

1шт.

2

700713458

SHAFT

1шт.

3

8730053

BEARING SET

1шт.

4

8730467

PIN

2шт.

5

8730475

HOUSING

1шт.

6

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

1шт.

8

145582C1

KIT

bearing

1шт.

9

N8306

PLATE

wafer

1шт.

10

A47309

PIN

1шт.

11

8730046

BEARING SET

1шт.

12

700713459

VALVE

block

1шт.

13

700713460

PLUG

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

15

700705529

SEAL KIT

KIT

1шт.
