Запчасти Case IH 8880HP (08-058) - HYDRAULIC HEADER DRIVE ASSEMBLY - FRONT (S.N. CFH0155300 AND LATER) (35) - HYDRAULIC SYSTEMS

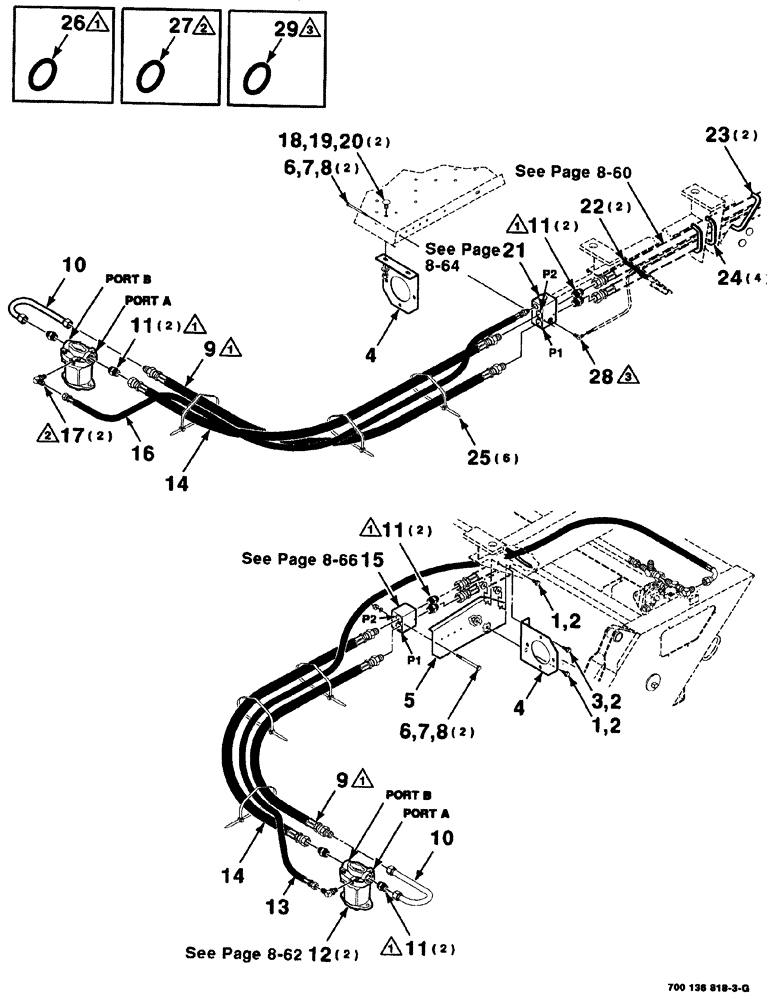

Схема запчастей Case IH 8880HP - (08-058) - HYDRAULIC HEADER DRIVE ASSEMBLY - FRONT (S.N. CFH0155300 AND LATER) (35) - HYDRAULIC SYSTEMS
14
7
18
25
4
7
8
10
9
1
27
23
28
1
29
2
5
4
2
20
24
16
22
13
17
26
3
12
14
11
9
19
8
6
10
6
2
11
11
11
15
21

Артикул

Название

Примечание

Количество

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

2

231-5146

FLANGE NUT,3/8"-16

3шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

4

700136878

PLATE

motor

2шт.

5

700136877

SUPPORT

valve

1шт.

6

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

1/4-20 x 3-1/2

4шт.

7

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

4шт.

8

1703354

NUT

1/4-20, HFTLN, GR/G

4шт.

9

700717097

HOSE

ASSEMBLY (Includes Ref. 26)

2шт.

10

700713346

TUBE,25.4 mm OD, 171, 114 mm Length

LINE hydraulic

2шт.

11

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight (Incl. Ref. 26)

8шт.

12

700713350

MOTOR

ASSEMBLY, fixed, hydraulic

2шт.

13

700716561

HOSE

hydraulic

1шт.

14

700717098

HOSE

hydraulic

2шт.

15

700716576

VALVE

ASSEMBLY, left

1шт.

16

700717099

HOSE

hydraulic

1шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

(Includes Ref. 27)

2шт.

18

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

19

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

2шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

700716575

VALVE

ASSEMBLY, right

1шт.

22

700718444

ORNAMENTAL STRIP

TRIM push on

2шт.

23

37479

WASHER

TRIM push on

2шт.

24

700105142

GROMMET

TRIM push on

4шт.

25

529070

CABLE TIE,368.3mm L

TIE nylon

6шт.

26

738476

O-RING

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref. 29)

1шт.

29

738468

O-RING

1шт.

Выбрано товаров: 29
