Запчасти Case IH 8880HP (08-056) - HYDRAULIC HEADER DRIVE ASSEMBLY - REAR (S.N. CFH0155001 THRU CFH0155299) (35) - HYDRAULIC SYSTEMS

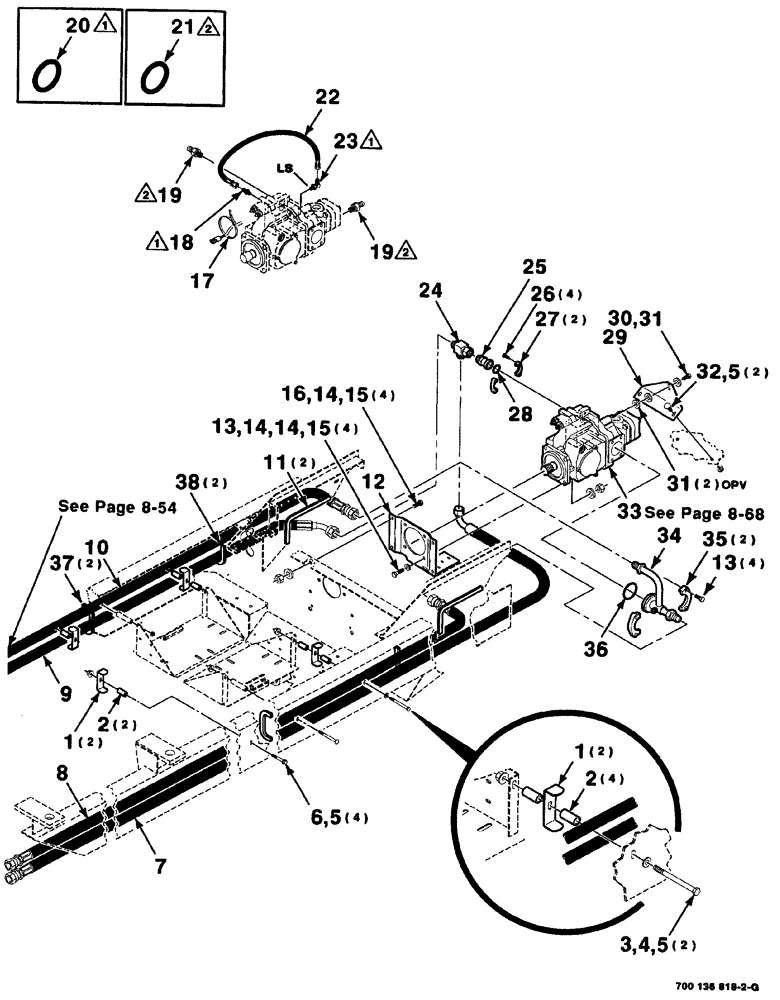

Схема запчастей Case IH 8880HP - (08-056) - HYDRAULIC HEADER DRIVE ASSEMBLY - REAR (S.N. CFH0155001 THRU CFH0155299) (35) - HYDRAULIC SYSTEMS
28
7
2
3
35
21
17
14
11
15
14
12
31
10
19
19
23
34
20
8
5
36
4
2
37
32
29
38
33
14
6
5
13
27
22
30
1
18
9
15
26
25
24
13
5
1
16
31

Артикул

Название

Примечание

Количество

1

700133575

RETAINER

4шт.

2

700133576

SPACER

6шт.

3

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 x 4-1/2, C

2шт.

4

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 3/8

2шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

8шт.

6

7702079

SCREW

3/8-16 x 2-1/2, HFS, GR 8

4шт.

7

700716579

HOSE

hydraulic, left

1шт.

8

700716581

HOSE

hydraulic

1шт.

9

700716578

HOSE

hydraulic

1шт.

10

700716580

HOSE

hydraulic

1шт.

11

700117735

ADHESIVE STRIP

TRIM push on

2шт.

12

700136876

MOUNTING PARTS

pump

1шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

12шт.

15

425-108

NUT,1/2" - 13, Gr 5

8шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

17

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE nylon

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. Ref. 20)

1шт.

19

700711217

FITTING

diagnostic (Includes Ref. 21)

2шт.

20

738468

O-RING

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

700707500

FLEXIBLE HOSE

hydraulic

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref. 20)

1шт.

24

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

fitting, tee, swivel

1шт.

25

700713355

UNION

straight

1шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C

4шт.

27

700713356

CLAMP

split flange

2шт.

28

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

29

700130066

ANGLE

mounting

1шт.

30

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

31

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

32

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

33

700713357

PUMP

ASSEMBLY, header drive

1шт.

34

700716577

FITTING

special

1шт.

35

700713353

CLAMP

split flange

2шт.

36

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

37

700105142

GROMMET

TRIM push on

2шт.

38

700715944

SEAL

TRIM push on

2шт.

Выбрано товаров: 38
