(08-050) - HYDRAULIC HEADER DRIVE CHARGE ASSEMBLY - FRONT

Запчасти Case IH 8880HP (08-050) - HYDRAULIC HEADER DRIVE CHARGE ASSEMBLY - FRONT (35) - HYDRAULIC SYSTEMS

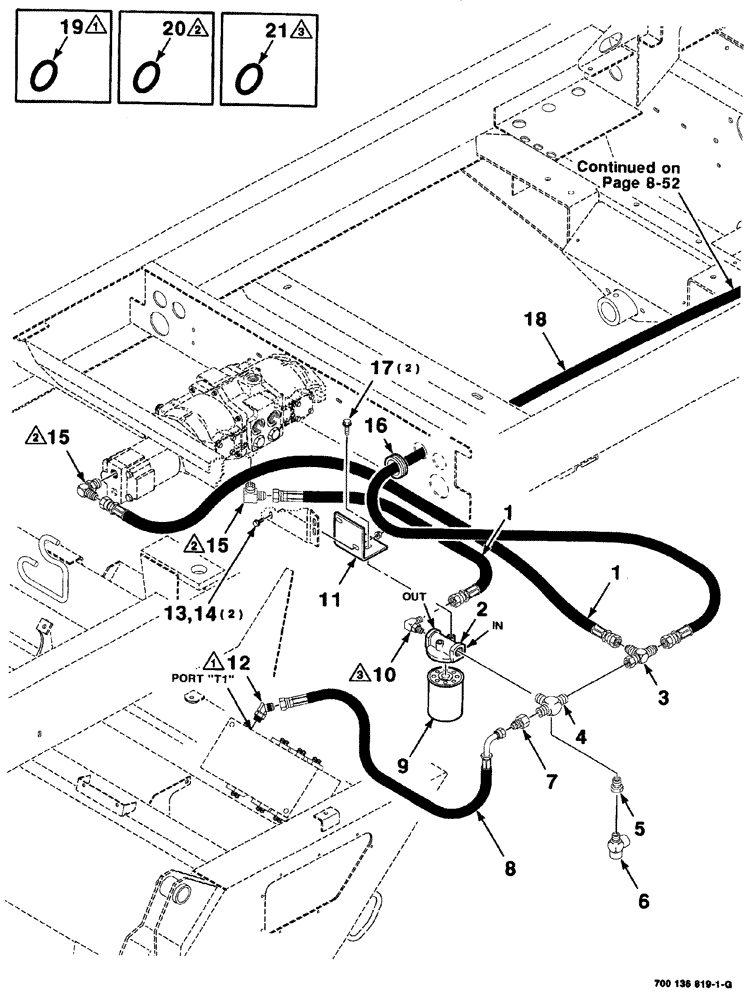

Схема запчастей Case IH 8880HP - (08-050) - HYDRAULIC HEADER DRIVE CHARGE ASSEMBLY - FRONT (35) - HYDRAULIC SYSTEMS
1
15
10
15
17
8
2
5
18
6
21
11
7
19
4
20
14
12
13
1
3
16
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8843054

HOSE

hydraulic

2шт.

2

8843260

FILTER

head

1шт.

3

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

4

700114940

3 WAY CONNECTION

tee

1шт.

5

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Pipe bushing

1шт.

6

7846041

FITTING

tee

1шт.

7

7791361

FITTING

ADAPTER special

1шт.

8

700709382

HOSE

hydraulic

1шт.

9

8040461

FILTER

element

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 21

1шт.

11

6827224

ANGLE

mounting

1шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 19

1шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. Ref. 20)

2шт.

16

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

17

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4, HWHMS

2шт.

18

700706991

HOSE

hydraulic

1шт.

19

738468

O-RING

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

738484

O-RING

1шт.
