(08-046) - HYDR. SLAVE CYL. ASSY. - RIGHT (2-3/4 INCH BORE X 5 INCH STROKE) (S.N. CFH0155350 AND LATER)

Запчасти Case IH 8880HP (08-046) - HYDR. SLAVE CYL. ASSY. - RIGHT (2-3/4 INCH BORE X 5 INCH STROKE) (S.N. CFH0155350 AND LATER) (35) - HYDRAULIC SYSTEMS

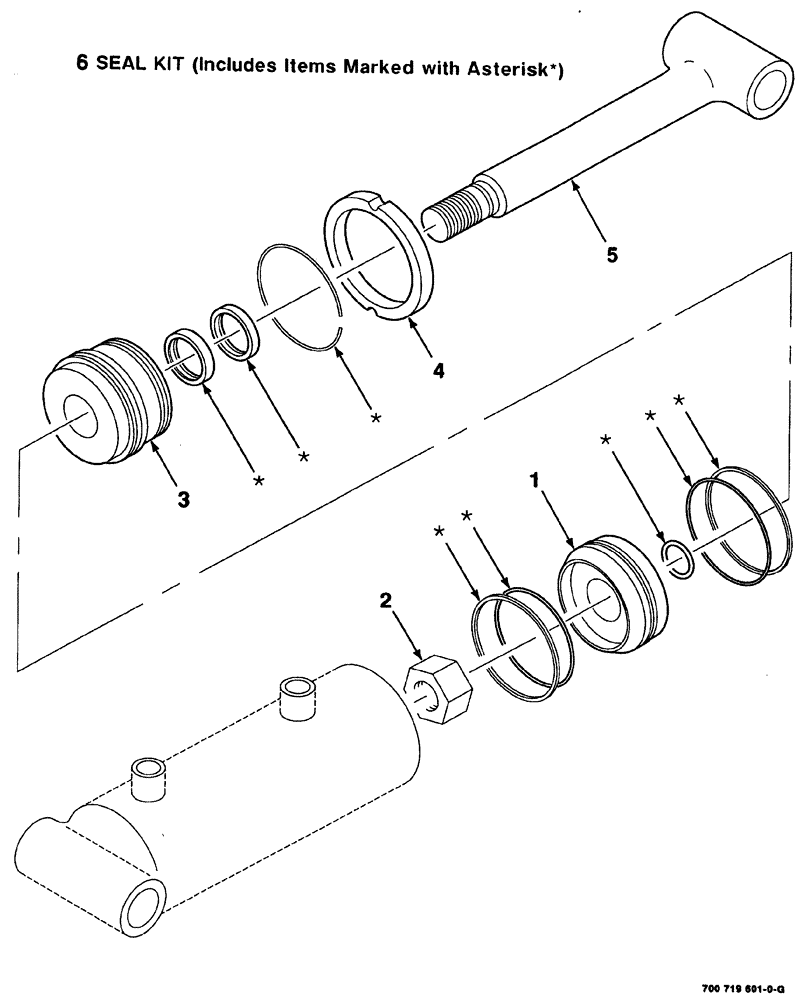

Схема запчастей Case IH 8880HP - (08-046) - HYDR. SLAVE CYL. ASSY. - RIGHT (2-3/4 INCH BORE X 5 INCH STROKE) (S.N. CFH0155350 AND LATER) (35) - HYDRAULIC SYSTEMS
6
4
1
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700719601

CYLINDER

ASSEMBLY, hydraulic (2-3/4 inch bore x 5 inch stroke)

1шт.

1

700716633

PISTON

1шт.

2

774315

NUT

HTLN, 7/8-14, GRC

1шт.

3

700716635

GUIDE

1шт.

4

700716637

NUT

spanner

1шт.

5

700719667

PISTON ROD

1шт.

6

700719628

SEAL KIT

KIT

1шт.
