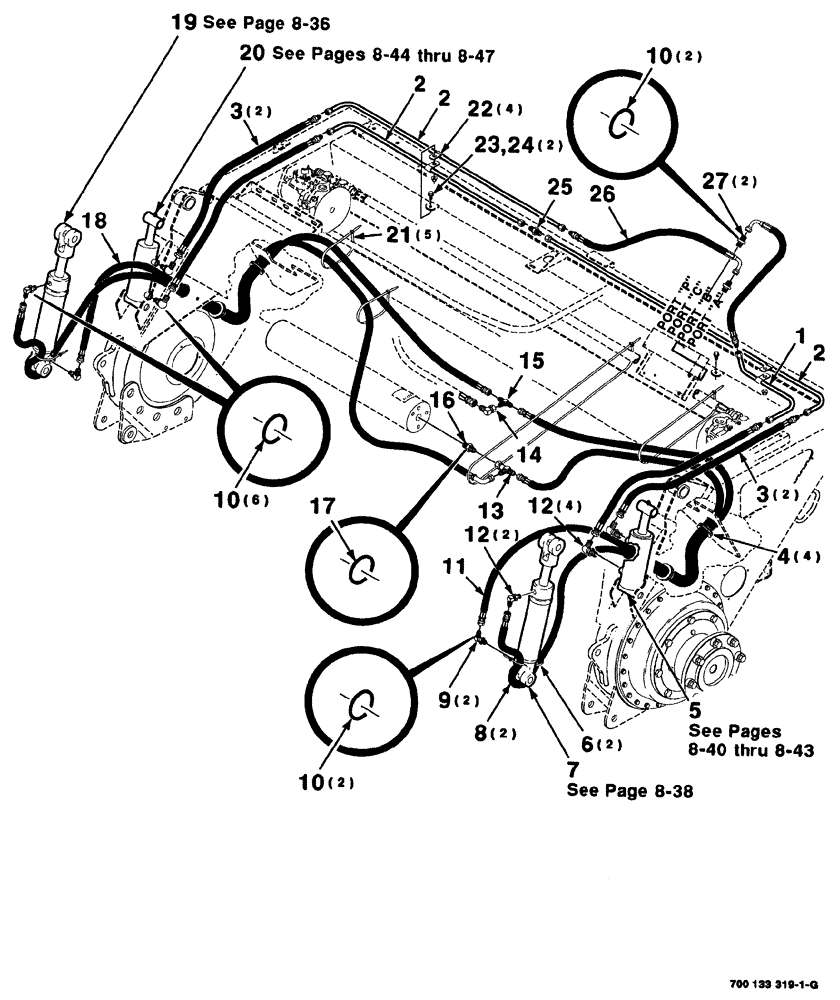

Запчасти Case IH 8880HP (08-028) - HEADER LIFT HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700715323

LINE

hydraulic

1шт.

2

700715324

LINE

hydraulic

3шт.

3

700705606

FLEXIBLE HOSE

hydraulic

4шт.

4

700707073

GROMMET

4шт.

5

700715437

CYLINDER

ASSEMBLY, hydraulic (S.N. CFH0155001 thru CFH0155349)

1шт.

5

700719600

CYLINDER

ASSEMBLY, hydraulic (S.N. CFH0155350 and later)

1шт.

6

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie

2шт.

7

700712021

CYLINDER

ASSEMBLY, hydraulic

1шт.

8

700707082

HOSE

hydraulic

2шт.

9

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90° (Includes Ref. 10)

2шт.

10

738468

O-RING

10шт.

11

700715513

HOSE

hydraulic

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(lncludes Ref. 10)

6шт.

13

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

JIC

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

15

218-593

TEE,9/16"-18, 37 Degree

union

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. Ref 17)

1шт.

17

738484

O-RING

1шт.

18

700715510

HOSE

hydraulic

1шт.

19

700712020

CYLINDER

ASSEMBLY, hydraulic

1шт.

20

700715438

CYLINDER

ASSEMBLY, hydraulic (S.N. CFH0155001 thru CFH0155349)

1шт.

20

700719601

CYLINDER

ASSEMBLY, hydraulic (S.N. CFH0155350 and later)

1шт.

21

529070

CABLE TIE,368.3mm L

tie

5шт.

22

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16, HFTLN, GR/G

2шт.

25

846477

UNION

ADAPTER straight

1шт.

26

700715398

HOSE

hydraulic

1шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. Ref.10)

2шт.
